Highsider faro LED HD-style

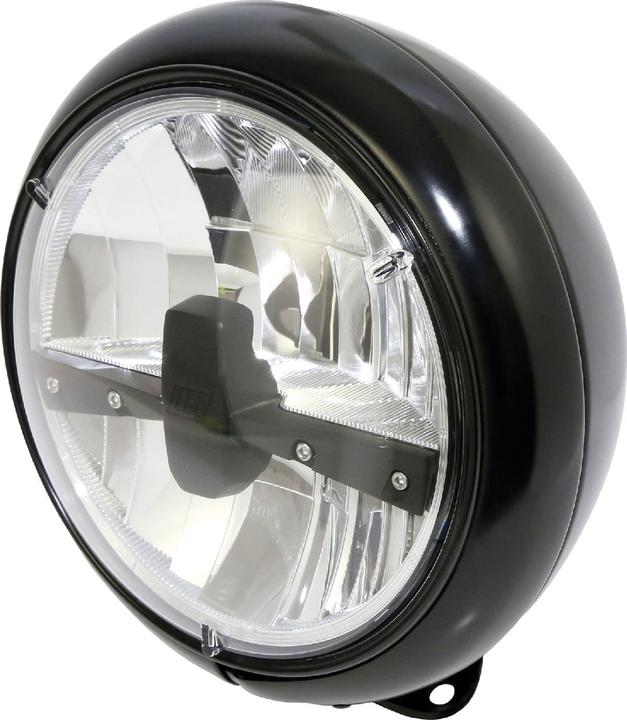

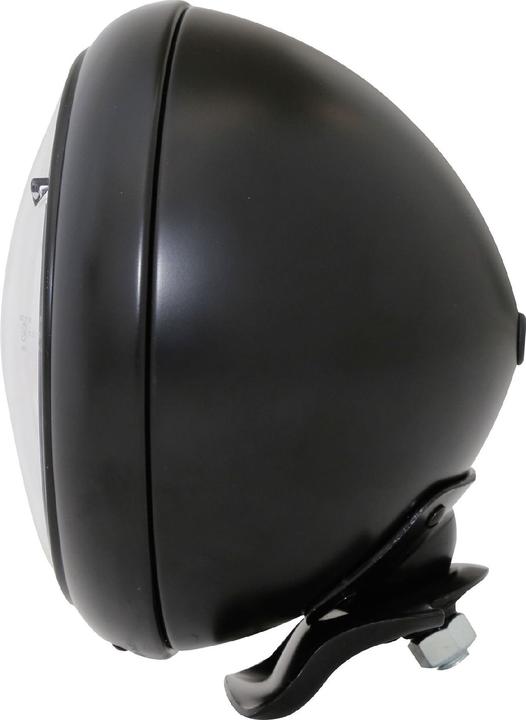

I see you in the eye, little one! Who can resist a Highsider 7-inch LED headlight like the HD-Style Type 3? If you're looking for a puristic yet stylishly innovative power headlight, this Highsider with a parking light function and clear round glass is an excellent choice. The metal housing for bottom mounting and the bezel are matte black, perfectly complemented by the chrome insert. This main headlight is, of course, E-approved. Attention: If this headlight is to be installed on a BMW R nine T 2017, an additional resistor is required.

Dimensions:

• Diameter: 190 mm
• Depth: 160 mm
• Center of mounting hole to rear housing: approx. 90 mm
• Mounting: bottom

Further details:
Connections at the reflector in the headlight housing:
Black wire = Ground (-)
Red wire = Low beam (+), power consumption: at 12 volts 18 watts / at 24 volts 17 watts, approx. 1132 lumens.
White wire = High beam (+), power consumption: at 12 volts 32 watts / at 24 volts 30 watts, approx. 1770 lumens.
Brown wire = Parking light (+), power consumption: at 12 volts 0.7 watts / at 24 volts 1.6 watts.

Connections:
Green wire = Ground (-)
Blue wire = High beam (+)
White wire = Low beam (+)

Delivery includes: 1 piece including connector (connection plug) with 210 mm cable, for H4 halogen bulbs.
