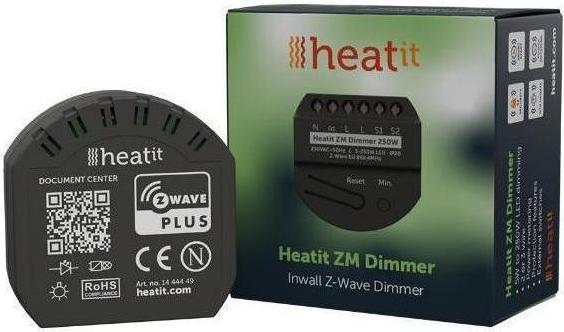

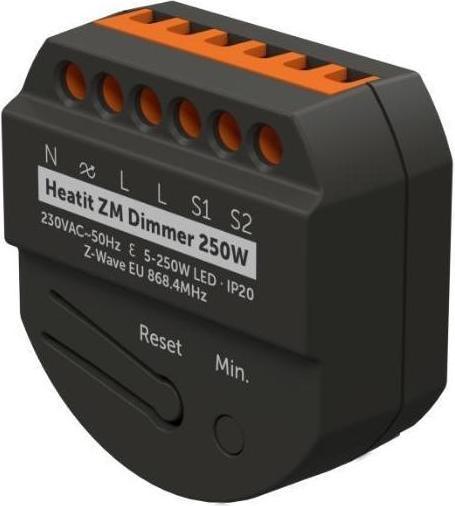

Heatit HEAE1444449 - ZM Dimmer 250W 800 series

The Heatit ZM Dimmer is a wall dimmer designed for installation in European electrical boxes. The dimmer allows users to control light sources via the Z-Wave network and/or an external switch.

The Heatit ZM Dimmer operates with most low loads, including LEDs and other lighting fixtures, without causing flickering.

This dimmer can be connected to two external switches, which can be used to control lighting, associated devices, and scenes.

The Heatit ZM Dimmer features active power measurement, providing real-time information about your energy consumption.

Features:

• Dimmer for flush-mounted installations
• Suitable for 2- or 3-wire installations
• Electrical power: 5W - 250W
• Lamp types: LED, incandescent, and halogen
• SmartStart Scene Controller
• Active power measurement
• Overload protection
• Short circuit protection
• Surge protection
• Overheating protection
• Two external switches
• Adjustable minimum dim level
• Maximum dim level auto-calibration
• On/Off functionality supported
• Encryption mode S0, S2 Authenticated Class, S2 Unauthenticated Class
• IOT Protocol: Z-Wave - 868.4 MHz (EU)
• Voltage: 230VAC
• Protection class (IP): IP20
• Ambient humidity (non-condensing RH %): 10-85
• Storage temperature range (°C): -30-70
• Range: 40m
• IOT Chip type: Z-Wave 800 Chip

Additional Data:

• Z-Wave Plus: yes
• Z-Wave S2: yes
• WEEE: yes
• CE: yes
• IP Class: IP20

Introduction to Z-Wave Plus™
Z-Wave Plus™ is a new level within the Z-Wave certification, designed to help consumers identify products that utilize the "GEN5" Z-Wave hardware platform (also known as the 500 series or 5th generation Z-Wave chips). Z-Wave Plus certified products offer several advantages that enhance usability and enable Z-Wave solutions...
