Product details

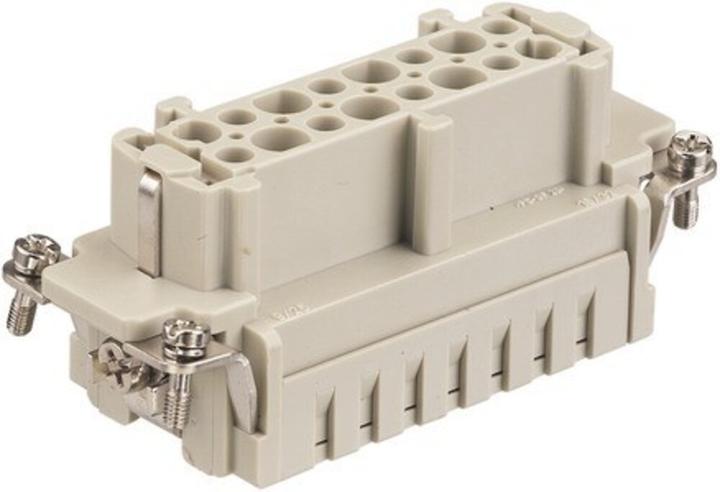

Harting socket insert 09330162716
Manufacturer: Harting
Designation: Socket insert Han 16 ES-F
Type: 09330162716
Number of power contacts: 16
Contact insert without contacts: No
Contact design: Socket
Number of poles: 16
Material of connector insert: Thermoplastic
Rated current: 16 A
Operating temperature: -40 to 125 °C
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Degree of pollution: 3
Electrical connection design: Spring-cage connection
With wire guard: No
Connectable conductor cross-section fine-wire without ferrule: 0.14 to 2.5 mm²
Connectable conductor cross-section multi-stranded: 0.14 to 2.5 mm²
Material of contact coating: Silver
Material of contact insert: Thermoplastic
Material of contact: Other copper alloys
Flammability class of insulating material according to UL 94: V0
With protective conductor: Yes
Min. number of mating cycles: 500
Harting socket insert 09330162716: more details
Inserts, cage clamp connection, socket, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 16 A, size: 16 B, contacts: 16, conductor cross-section: 0.14 to 2.5 mm², copper alloy, silver-plated.

Key specifications

Cable + connector type
Various
Item number
37030596

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09330162716
Release date
12.7.2023

Colour

Colour
Grey

Material

Material group
Plastic
Material
Other copper alloys, Silver, Thermoplastic resin

Cable + Connector Features

Cable + connector type
Various
Compatible hardware
Various
Max. temperature
125 °C
Min. temperature
-40 °C
Manufacturer Type
09330162716
Connectors Design
Flange bushing
Number of cores
16 x

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
Socket insert Han 16 ES-F

Product dimensions

Width
1.60 cm
