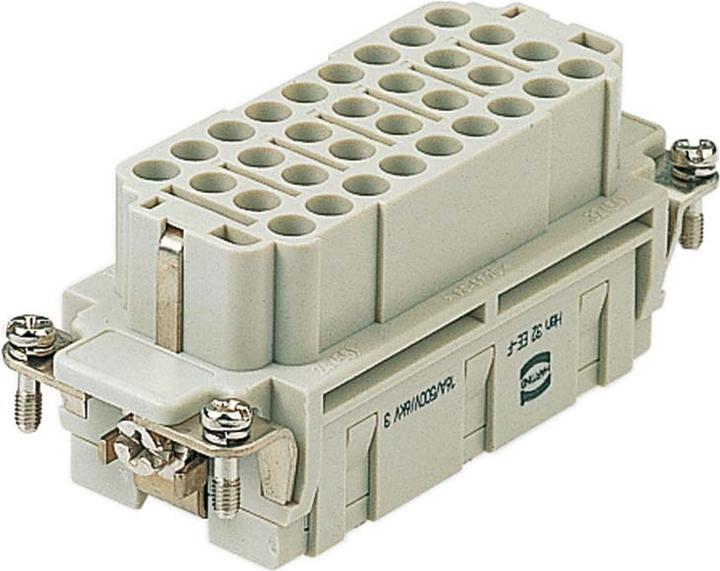

Harting Indsats hun-del 32 pol crimp HAN 16 B

The Harting crimp connector 09320323101 is a highly developed socket insert designed for a variety of applications in electrical engineering. With a pin count of 32 and a rated current of 16 A, this connector provides a reliable connection for fine-stranded and multi-stranded conductors with cross-sections ranging from 0.14 to 4 mm². The insert is made from high-quality thermoplastic, ensuring high temperature resistance from -40 °C to 125 °C. Its robust construction and the ability to perform up to 500 mating cycles make this crimp connector a durable solution for demanding environments. Additionally, the connector is equipped with a protective conductor, providing added safety. The use of materials that meet the flammability class V0 according to UL 94 enhances fire safety.

• Socket insert with 32 contacts for versatile applications
• Temperature range of -40 °C to 125 °C for high flexibility
• Suitable for conductor cross-sections from 0.14 to 4 mm²
• Robust construction with up to 500 mating cycles
• Version with protective conductor for additional safety.
