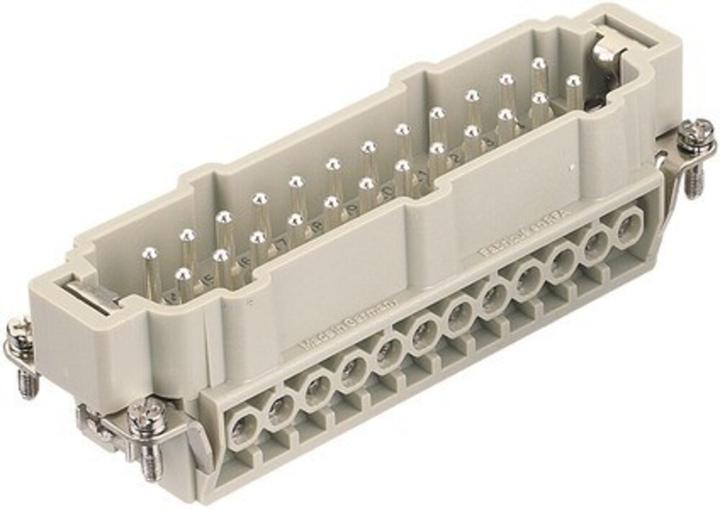

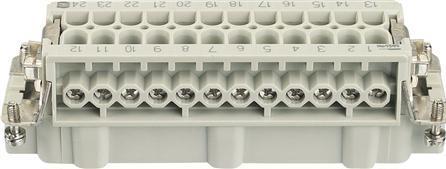

Harting HAN E plug connector, insert type 24handle connector screw terminal max 2.5mm2, 16A24 pole

The HAN E connector from Harting is a highly developed screw connection designed for a wide range of applications in electronics. With a 24-pin contact insert, this connector provides a reliable connection for conductor cross-sections from 0.75 to 2.5 mm². The insert is made of robust thermoplastic, ensuring high resistance to extreme temperatures ranging from -40 to 125 °C. The connector is rated for a current of up to 16 A and a voltage of 500 V, making it ideal for demanding electrical applications. The silver contact coating ensures excellent conductivity and durability. With a minimum of 500 mating cycles, this connector is suitable for long-term use and offers high reliability in various environments.

• 24-pin contact insert for versatile applications
• Temperature range of -40 to 125 °C for extreme conditions
• Rated current of 16 A and rated voltage of 500 V
• Silver coating for improved conductivity
• Robust construction with a lifespan of at least 500 mating cycles.
