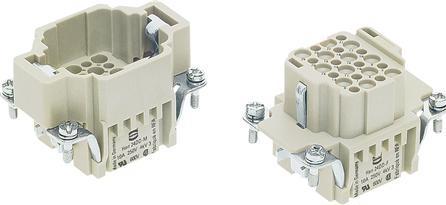

Harting HAN DD Connector, insert type 6B socket crimp max 2,5mm2, 10A24 pole

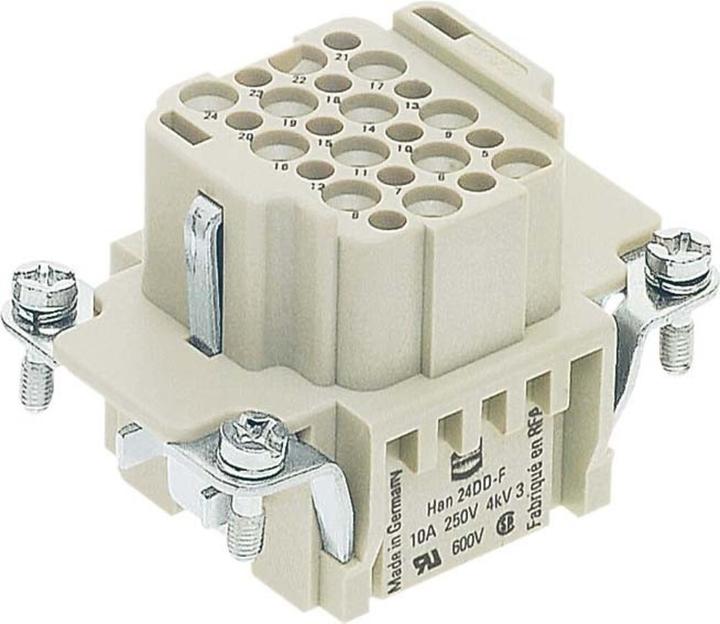

Harting contact insert crimp 09160243101
Manufacturer: Harting
Designation: Contact insert crimp
Type: 09160243101
Number of power contacts: 24
Contact insert without contacts: No
Contact design: Socket
Number of poles: 24
Material of the connector insert: Other
Rated current: 10 A
Operating temperature: -40 to 125 °C
Rated voltage: 250 V
Rated impulse voltage: 4 kV
Pollution degree: 3
Electrical connection type: Crimp connection
With wire protection: No
Connectable fine-stranded conductor cross-section without ferrule: 0.14 to 2.5 mm²
Connectable conductor cross-section stranded: 0.14 to 2.5 mm²
Material of contact coating: Other
Material of contact insert: Other
Material of contact: Other
Flammability class of insulating material according to UL 94: V0
With protective conductor: Yes
Minimum number of mating cycles: 500
Harting contact insert crimp 09160243101: Further details include inserts, crimp connection, socket, RAL 7032 (pebble grey), rated current: 10 A, size: 6 B, contacts: 24, conductor cross-section: 0.14 to 2.5 mm².
