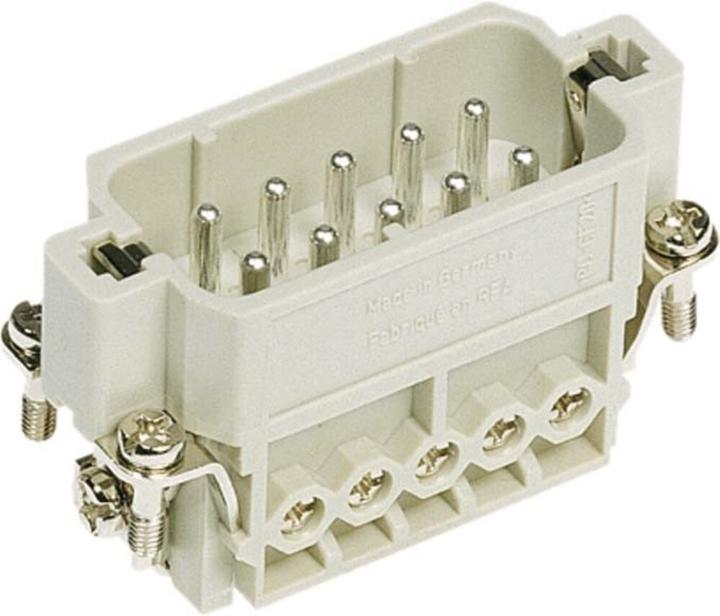

Harting HAN A connector, insert type 10A screw terminal max 2.5mm2, 16A10 pole

Ratings
Delivered between Fri, 30.5. and Tue, 3.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

Harting screw terminal 09200102612
Manufacturer: Harting
Designation: Screw terminal
Type: 09200102612
Number of power contacts: 10
Contact insert without contacts: No
Contact design: Pin
Number of poles: 10
Material of connector insert: Thermoplastic
Rated current: 16 A
Operating temperature: -40 to 125 °C
Rated voltage: 250 V
Rated impulse voltage: 4 kV
Pollution degree: 3
Electrical connection type: Screw connection
With wire protection: No
Connectable fine-stranded conductor cross-section without ferrule: 0.75 to 2.5 mm²
Connectable conductor cross-section stranded: 0.75 to 2.5 mm²
Material of contact coating: Silver
Material of contact insert: Thermoplastic
Material of contact: Other copper alloys
Flammability class of insulating material according to UL 94: V0
With protective earth: Yes
Minimum number of mating cycles: 500

Harting screw terminal 09200102612: further details include inserts, screw terminal, male, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 16 A, size: 10 A, contacts: 10, conductor cross-section: 0.75 to 2.5 mm², copper alloy, silver-plated.

Key specifications

Cable + connector type
Plug connectors
Item number
32503572

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09200102612
Release date
23.1.2023

Colour

Colour
Grey

Material

Material group
Plastic
Material
Other copper alloys, Silver, Thermoplastic resin

Cable + Connector Features

Cable + connector type
Plug connectors
Max. temperature
125 °C
Min. temperature
-40 °C
Manufacturer Type
09200102612
Number of cores
10 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
3.29 cm
Width
2.28 cm
Height
5.65 cm
