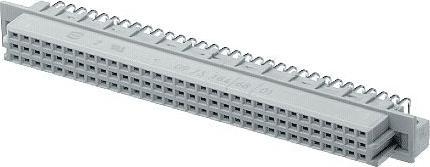

Harting Female multipoint connector R 90° 96pole DIN 41612

Minimum order 4
Ratings
BrandMore from Harting
Delivered between Tue, 30.12. and Mon, 5.1.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

The R 90° 96-pin DIN 41612 header from Harting is a highly advanced connector designed for PCB mounting. With a robust construction and a high number of mating cycles, this connector is ideal for applications that require a reliable connection. The header features a 96-pin configuration with a pitch of 2.54 mm and is designed at a right angle, allowing for space-saving installation. The contact materials consist of a copper alloy with a high-quality gold plating over palladium-nickel, enhancing durability and electrical performance. The header is suitable for operating temperatures ranging from -55 °C to 125 °C, making it versatile for various applications. These features make the header an excellent choice for demanding electronic applications.

  • 96-pin configuration with 3 rows
  • High number of mating cycles (400)
  • Operating temperature from -55 °C to 125 °C
  • Gold plating over palladium-nickel for improved contact quality
  • Suitable for PCB mounting with angled design.

Key specifications

Cable + connector type
Plug connectors
Item number
52636242

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09 73 296 6801
Release date
5.11.2024
Minimum order
4

Material

Material group
Metal
Material
Copper alloy, Nickel

Cable + Connector Features

Cable + connector type
Plug connectors
Max. temperature
125 °C
mounting type
PCB mounting
Connectors Design
Angled

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
9.50 cm
Width
2 cm
Height
2.40 cm

30-day right of return
24 Months Warranty (Bring-in)
