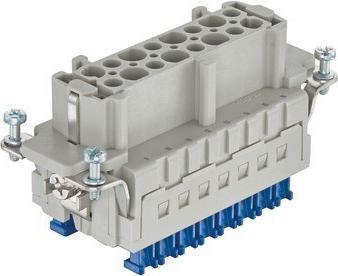

Harting ES Press connection

Harting ES Press connection 09330162748 Manufacturer :Harting Designation :ES Press connection Han 16 Socket Type :09330162748 Number of power contacts :16 Contact insert without contacts :no Contact design :Socket Number of poles :16 Material of connector insert :Thermoplastic Rated current In :16 A Operating temperature :-40..125 °C Rated voltage :500 V Rated impulse voltage :6 kV Degree of pollution :3 Electrical connection design :Spring-cage connection With wire guard :no Connectable conductor cross-section fine-wire without ferrule :0.14...2.5 mm² Connectable conductor cross-section multi-stranded :0.14..2.5 mm² Material of contact coating :Silver Material of contact insert :Thermoplastic Material of contact :Other copper alloys Flammability class of insulating material to UL 94 :V0 With protective conductor :yes Min. number of mating cycles :500 Hart Number of mating cycles :500 Harting ES Press connection 09330162748: more details Inserts, cage clamp connection, socket, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 16 A, size: 16 B, contacts: 16, conductor cross-section: 0.14...2.5 mm², copper alloy, silver-plated , EAN: 5713140163232.
