Harting Crimp connection

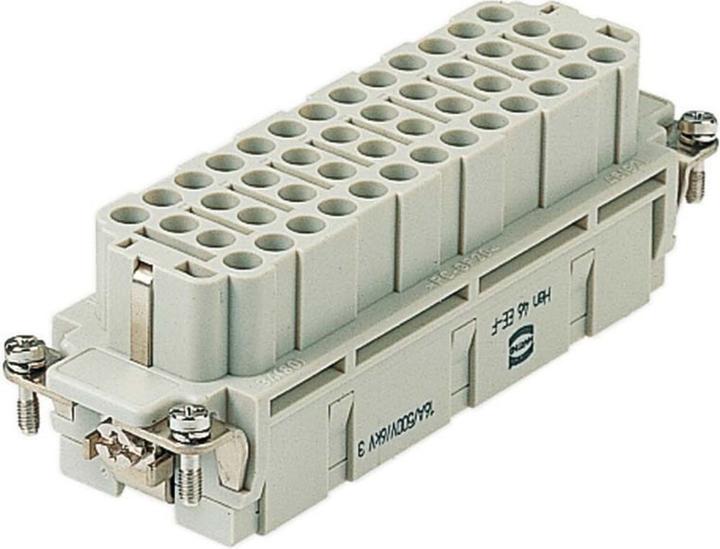

Harting Crimp terminal 09320463101 Manufacturer :Harting Designation :Crimp terminal Socket insert Type :09320463101 Number of power contacts :46 Contact insert without contacts :no Contact design :Socket Number of poles :46 Material of the connector insert :Thermoplastic Rated current In :16 A Operating temperature :-40..125 °C Rated voltage :500 V Rated impulse voltage :6 kV Pollution degree :3 Electrical connection type :Crimp connection With wire protection :no Connectable conductor cross-section, fine-stranded without ferrule :0.14..4 mm² Connectable conductor cross-section stranded :0.14..4 mm² Material of contact coating :other Material of contact insert :thermoplastic Material of contact :other Flammability class of insulation material according to UL 94 :V0 With protective conductor :yes Min. Number of mating cycles :500 Harting crimp terminal 09320463101: further details Inserts, crimp terminal, socket, polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 24 B, Contacts: 46, Conductor cross-section: 0.14...4 mm² , EAN: 5713140049369.
