Harting Contact insert

Ratings
BrandMore from Harting
Delivered between Fri, 11.7. and Tue, 15.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

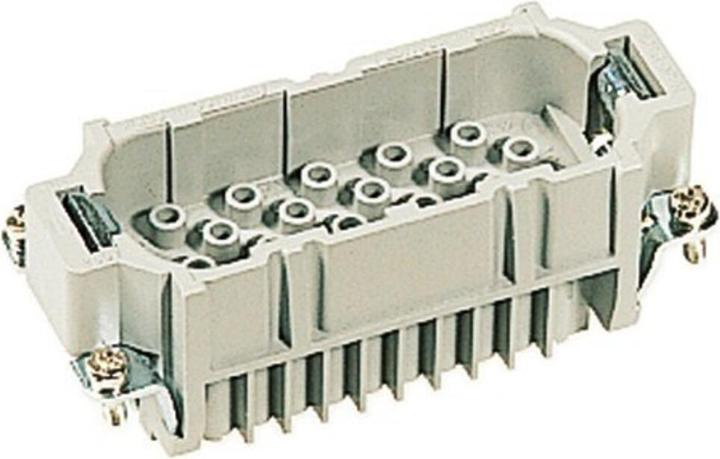

Harting contact insert crimp 09210403001

Manufacturer: Harting
Designation: Contact insert crimp
Type: 09210403001
Number of power contacts: 40
Contact insert without contacts: No
Contact design: Pin
Number of poles: 40
Material of connector insert: Thermoplastic
Rated current: 10 A
Operating temperature: -40 to 125 °C
Rated voltage: 250 V
Rated impulse voltage: 4 kV
Pollution degree: 3
Electrical connection design: Crimp connection
With wire protection: No
Connectable conductor cross-section fine-wire without ferrule: 0.14 to 2.5 mm²
Connectable conductor cross-section multi-stranded: 0.14 to 2.5 mm²
Material of contact coating: Other
Material of contact insert: Thermoplastic
Material of contact: Other
Flammability class of insulating material to UL 94: V0
With protective conductor: Yes
Minimum number of mating cycles: 500
Number of mating cycles: 500

Harting contact insert crimp 09210403001: more details
Inserts, crimp connection, pin, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 10 A, size: 16 B, contacts: 40, conductor cross-section: 0.14 to 2.5 mm².

Key specifications

Cable + connector type
Various
Item number
37029841

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09210403001
Release date
12.7.2023

Colour

Colour
Grey

Material

Material group
Plastic
Material
Thermoplastic resin

Cable + Connector Features

Cable + connector type
Various
Compatible hardware
Various
Max. temperature
125 °C
Min. temperature
-40 °C
Manufacturer Type
09210403001
Number of cores
40 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
Contact insert

30-day right of return
24 Months Warranty (Bring-in)
