Harting 09 70 006 2813 Fjederindsats Han® Staf 6 Skruer 1 stk

Ratings
BrandMore from Harting
Delivered between Thu, 7.8. and Sat, 23.8.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

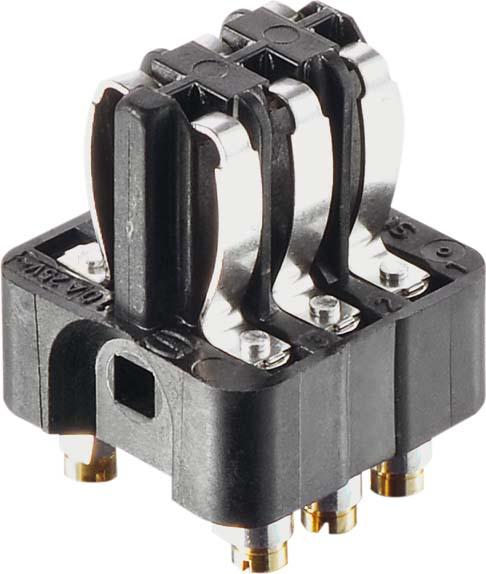

Harting spring insert 09700062813
Manufacturer: Harting
Designation: Spring insert screw connection
Type: 09700062813
Number of power contacts: 6
Contact insert without contacts: No
Contact design: Socket
Number of poles: 6
Material of the connector insert: Thermoplastic
Rated current: 10 A
Operating temperature: -40 to 100 °C
Rated voltage: 25 V
Rated impulse voltage: 0.8 kV
Pollution degree: 3
Electrical connection type: Screw connection
With wire protection: No
Connectable conductor cross-section flexible without ferrule: 1.5 mm²
Connectable conductor cross-section stranded: 1.5 mm²
Material of contact coating: Silver
Material of contact insert: Thermoplastic
Material of contact: Other copper alloys
Flammability class of insulating material according to UL 94: HB
With protective earth: No
Minimum number of mating cycles: 500
Harting spring insert 09700062813: Further details include inserts, screw connection, socket, polyamide (PA), black, rated current: 10 A, size: 3 A, contacts: 6, conductor cross-section: 1.5 mm², copper alloy, silver-plated.

Key specifications

Cable + connector type
Various
Item number
32496327

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09700062813
Release date
23.1.2023

Colour

Colour
Black

Material

Material group
Metal
Material
Other copper alloys, Thermoplastic resin

Cable + Connector Features

Cable + connector type
Various
Max. temperature
100 °C
Min. temperature
-40 °C
Manufacturer Type
09700062813
Connectors Design
Flange bushing
Number of cores
6 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
2.30 cm
Width
2.10 cm
Height
2.10 cm
