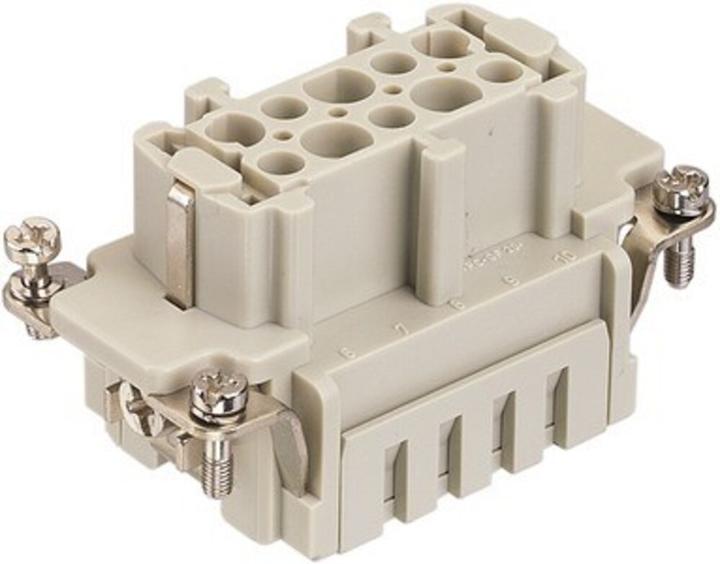

Harting 09 33 010 2716 Connecting insert Han® E 10 + PE clip tension spring 10 pieces

Harting socket insert 09330102716
Manufacturer: Harting
Designation: Socket insert Han 10 ES-F
Type: 09330102716
Number of power contacts: 10
Contact insert without contacts: No
Contact design: Socket
Number of poles: 10
Material of the connector insert: Thermoplastic
Rated current: 16 A
Operating temperature: -40 to 125 °C
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Pollution degree: 3
Electrical connection type: Spring-cage connection
With wire protection: No
Connectable fine-stranded conductor cross-section without ferrule: 0.14 to 2.5 mm²
Connectable conductor cross-section stranded: 0.14 to 2.5 mm²
Material of contact coating: Silver
Material of contact insert: Thermoplastic
Material of contact: Other copper alloys
Flammability class of insulating material according to UL 94: V0
With protective conductor: Yes
Minimum number of mating cycles: 500

Harting socket insert 09330102716: further details include inserts, cage clamp terminal, socket, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 16 A, size: 10 B, contacts: 10, conductor cross-section: 0.14 to 2.5 mm², copper alloy, silver-plated.
