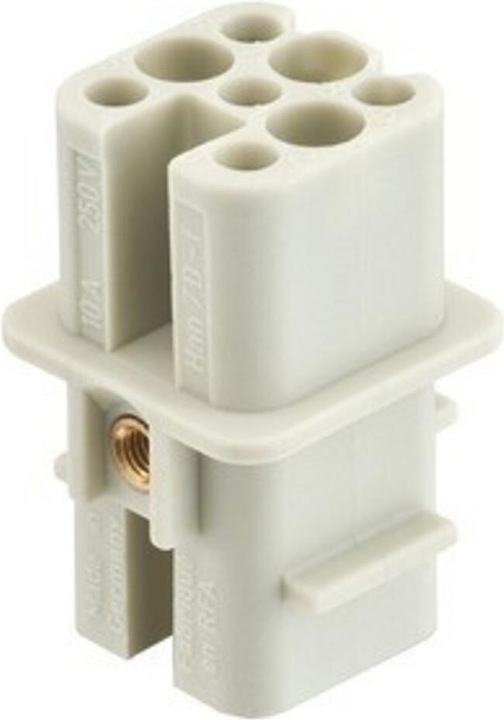

Harting 09 21 007 3131 Tilslutningsindsats Han® D 7 + PE Crimp 1 pcs.

Harting Socket insert for crimp flange 09210073131 Manufacturer :Harting Designation :Socket insert for crimp flange Type :09210073131 Number of power contacts :7 Contact insert without contacts :no Contact design :Socket Number of poles :7 Material of the connector insert :Thermoplastic Rated current In :10 A Operating temperature :-40..125 °C Rated voltage :250 V Rated impulse voltage :4 kV Pollution degree :3 Electrical connection type :Crimp connection With wire protection :no Connectable fine-stranded conductor cross-section without ferrule :0.14..2.5 mm² Connectable conductor cross-section stranded :0.14..2.5 mm² Material of contact coating :other Material of contact insert :thermoplastic Material of contact :other Flammability class of insulating material acc. to UL 94 :HB With protective conductor :yes Min. Number of mating cycles :500 Harting socket inserts f.crimp flange 09210073131: further details inserts, crimp connection, socket, polyamide (PA), RAL 7032 (pebble grey), rated current: 10 A, size: 3 A, contacts: 7, conductor cross-section: 0.14...2.5 mm² , EAN: 5713140040458.
