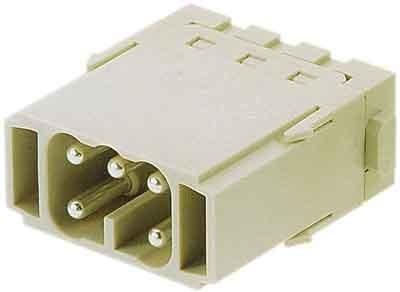

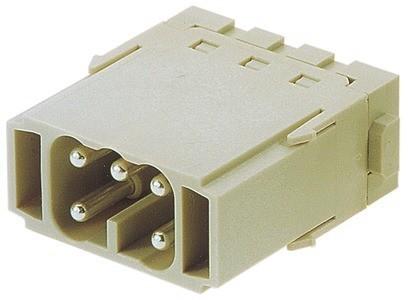

Harting 09 14 005 2616 Industrial connector Amphenol C146 Content: 1 piece

Ratings
BrandMore from Harting
Delivered between Fri, 11.7. and Tue, 15.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Harting pin insert 09140052616
Manufacturer: Harting
Designation: Pin insert cage clamp flange
Type: 09140052616
Number of power contacts: 5
Contact insert without contacts: No
Contact design: Pin
Number of poles: 5
Material of connector insert: Thermoplastic
Rated current: 16 A
Operating temperature: -40 to 125 °C
Rated voltage: 400 V
Rated impulse voltage: 6 kV
Degree of pollution: 3
Electrical connection type: Spring-cage connection
With wire protection: No
Connectable fine-stranded conductor cross-section without ferrule: 0.14 to 2.5 mm²
Connectable stranded conductor cross-section: 0.14 to 2.5 mm²
Material of contact coating: Silver
Material of contact insert: Thermoplastic
Material of contact: Other copper alloys
Flammability class of insulating material according to UL 94: V0
With protective conductor: No
Min. number of mating cycles: 500
Harting pin insert 09140052616: Further details
Han ES module, single module, cage clamp terminal, pin, contacts: 5, conductor cross-section: 0.14 to 2.5 mm², rated current: 16 A, polycarbonate (PC), RAL 7032 (pebble grey), copper alloy, silver-plated.

Key specifications

Cable + connector type
Various
Item number
32503659

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09140052616
Release date
23.1.2023

Colour

Colour
Grey

Material

Material group
Metal
Material
Copper alloys, Silver, Thermoplastic resin

Cable + Connector Features

Cable + connector type
Various
Compatible hardware
Various
Max. temperature
125 °C
Min. temperature
-40 °C
Manufacturer Type
09140052616
Number of cores
5 x

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

30-day right of return
24 Months Warranty (Bring-in)
