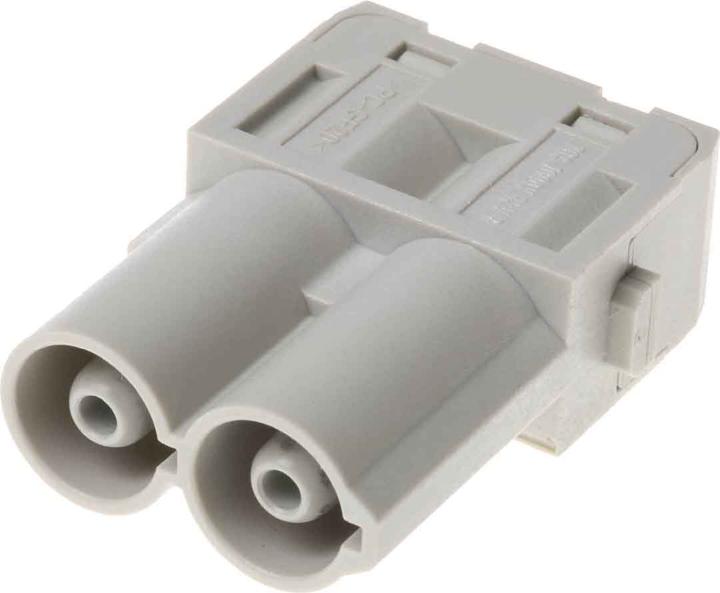

Harting 09 14 002 2641 Industrial connector Amphenol C146 Content: 1 piece

Ratings
BrandMore from Harting
Delivered between Wed, 6.8. and Fri, 22.8.
More than 10 pieces in stock at supplier
free shipping

Product details

The Amphenol C146 industrial connector is a high-quality pin module designed for demanding applications in the industry. With a robust construction made from thermoplastic and a silver contact coating, this connector provides a reliable electrical connection. It is rated for a current of up to 70 A and a voltage of 1000 V, making it ideal for use in various electrical systems. The connector is suitable for a temperature range of -40 to 125 °C, which enhances its versatility. The design allows for easy installation with an axial screw connection, accommodating conductor cross-sections from 6 to 16 mm². With a minimum of 500 mating cycles, the Amphenol C146 ensures a long lifespan and reliability in demanding environments.

  • Rated current of 70 A and rated voltage of 1000 V
  • Temperature range of -40 to 125 °C
  • Axial screw connection for easy installation
  • Conductor cross-section of 6 to 16 mm²
  • Minimum of 500 mating cycles for high reliability.

Key specifications

Cable + connector type
Various
Item number
32503684

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09140022641
Release date
23.1.2023

Colour

Colour
Grey

Material

Material group
Metal
Material
Copper alloys, Thermoplastic resin

Cable + Connector Features

Cable + connector type
Various
Compatible hardware
Various
Max. temperature
125 °C
Min. temperature
-40 °C

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
Axial screw connection, Conductor cross-section: 6...16 mm², Contacts: 2, Copper alloy, Han 70 A module, Pen, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 70 A, Silver plated, Single module

30-day right of return
24 Months Warranty (Bring-in)
