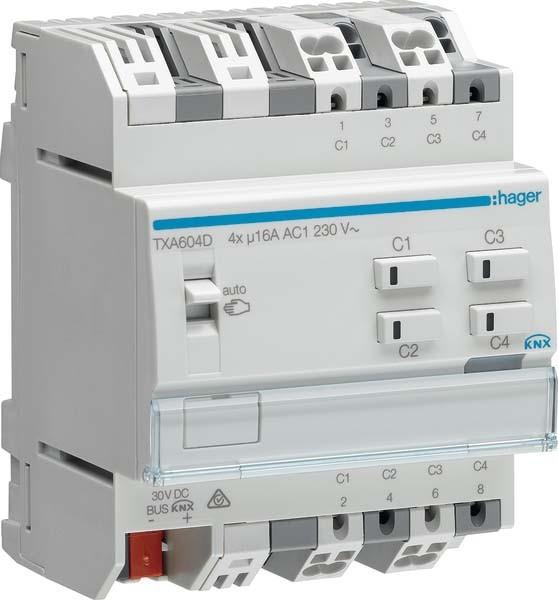

Hager Switch/shutter actuator TXA604D 4/2-way KNX easy 16A C-load

Switch/Shutter Actuator 4/2-fold KNX easy, 16A, C-load. The switch/shutter actuator allows for the control of an independent load per actuator channel or the operation of a shutter drive using two actuator channels. A mixed operation of drive and switching functions is possible. The device is a rail-mounted unit with an integrated bus coupler, QuickConnect terminal blocks for KNX bus connection, load/switch connections, and a labeling field.

It features a manual operation button for each output with a status LED (single-surface operation), a toggle switch for auto/manual mode, and a backlit programming button. Functions include control options for the switch channels for on/off, a timer function with a switch-off warning, and forced control with the respective status display. The automatic function can be enabled/disabled, and a load shedding through channel shutdown with the highest priority is possible.

There are 64 scene functions adjustable per channel. The roller shutter/shutter function offers a raise/lower operation with slat angle adjustment, positioning function, and slat adjustment for the shutter in percentage parameterization. Status objects indicate the position of the slats in percentage as well as the upper/lower end position. Forced control with status display and three alarm objects with different priority control are also available.

Additionally, there are 64 scene functions per channel and an adjustable sun protection function. Note: The device can be programmed using the easy commissioning tool, easy configuration server, or ETS (from version 4). Please observe the instructions from the roller shutter/shutter motor manufacturers.
