Product details

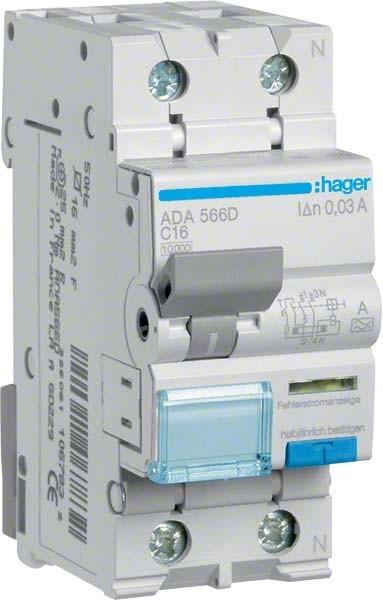

Hager RCD/MCB Switch ADA566D

Manufacturer: Hager
Description: RCD/MCB switch 1P+N 10kA C-16A 30mA
Type: ADA566D
Number of poles (total): 2
Number of protected poles: 1
Rated voltage: 240 V
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Rated current: 16 A
Rated residual current: 0.03 A
Residual current type: A
Energy limitation class: 3
Power loss: 5.2 W
Rated short-circuit breaking capacity according to IEC 60947-2: 10 kA
Rated switching capacity Icn according to EN 61009-1: 10 kA
Tripping characteristic: instantaneous
Surge current withstand: 0.25 kA
Voltage type: AC
Frequency: 50 Hz
Tripping characteristic: C
Switched neutral conductor: yes
With locking device: yes
Overvoltage category: 3
Pollution degree: 2
Ambient temperature during operation: -25..40 °C
Width in modular units: 2
Installation depth: 68 mm
Flush-mounted installation: yes
False tripping protection: no
Protection class (IP): IP2X
Connectable conductor cross-section single-core: 1..25 mm²
Connectable conductor cross-section multi-core: 1..16 mm²

Hager RCD/MCB Switch ADA566D: additional details
Residual current circuit breaker 1P+N 10kA C-16A 30mA Type A.
Residual current circuit breaker according to DIN EN61009-1 (VDE 0664-20) and DIN EN 61009-2-1 (VDE 0664-21) with Bi-Connect terminals at the bottom, blue test button, and residual current display. Easy removal from the phase rail assembly. Suitable for retrofitting additional devices. Labeling option directly on the device.
EAN: 3250611067832.

Key specifications

Circuit breaker type
Fault current circuit breaker
Mounting type
Top-hat rail
number of poles
1
Length
68 mm
Width
35 mm

General information

Item number
10864634
Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
ADA566D
Release date
26.3.2019

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
Mounting type
Top-hat rail
Mounting type
Screw fastening
number of poles
1
Tripping characteristic
C
Rated current
16 A
Rated current
0.03 A
Rated voltage
240 V
voltage type
AC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
11.53 kg
Climate contribution
CHF 0.27

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
68 mm
Width
35 mm
Height
83 mm

Package dimensions

Length
10 cm
Width
8 cm
Height
4 cm
Weight
220 g
