Hager RCD 2pin 16A/30mA 6kA CDA216D

Ratings
Delivered between Tue, 17.6. and Fri, 20.6.
6 items in stock at third-party supplier
Supplied by
JACOB DE

Product details

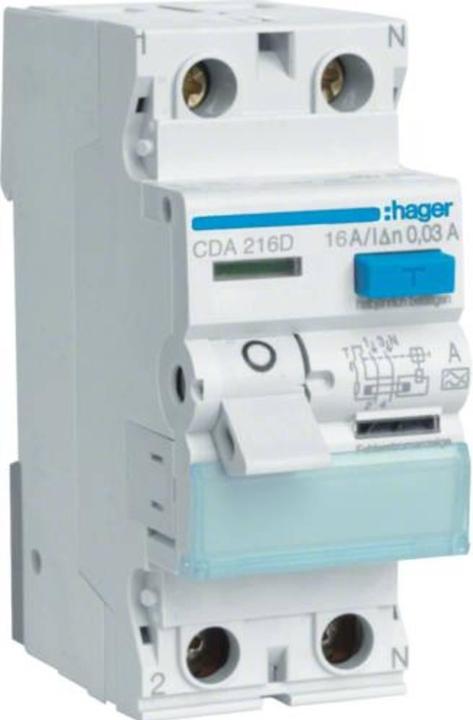

Hager RCD CDA216D

Manufacturer: Hager
Designation: RCD 2-pole 16A/30mA, 6kA
Type: CDA216D
Number of Poles: 2
Rated Voltage: 230 V
Rated Current: 16 A
Rated Residual Current: 0.03 A
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Resistance Uimp: 4 kV
Power Loss: 0.95 W
Mounting Type: DIN Rail
Residual Current Type: A
Selective Type: No
Time Delay Type: No
Short-Circuit Strength (Icw): 6 kA
Surge Current Strength: 0.25 kA
Voltage Type: AC
With Locking Device: Yes
Frequency: 50 Hz
Additional Devices Possible: Yes
Protection Class (IP): IP20
Width in Division Units: 2
Installation Depth: 70 mm
Ambient Temperature During Operation: -25..40 °C
Degree of Pollution: 2
Connectable Conductor Cross-Section Multi-Wire: 1..16 mm²
Connectable Conductor Cross-Section Single-Wire: 1..25 mm²
RAL Number (similar): 7005
Explosion-Proof: No

Hager RCD CDA216D: Additional Details
2-pole residual current circuit breaker 6kA 16A 30mA Type A. Residual current circuit breaker (RCD) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with Bi-Connect terminals at the bottom, external blue test button, and residual current indicator. Suitable for retrofitting additional devices. Connection terminals with wire insertion protection, labeling possibility directly on the device. EAN: 3250611610021.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
70 mm
Width
35 mm
mounting style
Top-hat rail
number of poles
2
Item number
20020807

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
CDA216D
Release date
16.3.2022
Sales rank in Category Residual-current device
29 of 14979

Colour

Colour
Grey
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
2
Tripping characteristic
A
Rated current
16 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
35 mm
Height
83 mm
Weight
2 g

30-day right of return if unopened
24 Months Warranty (Bring-in)
