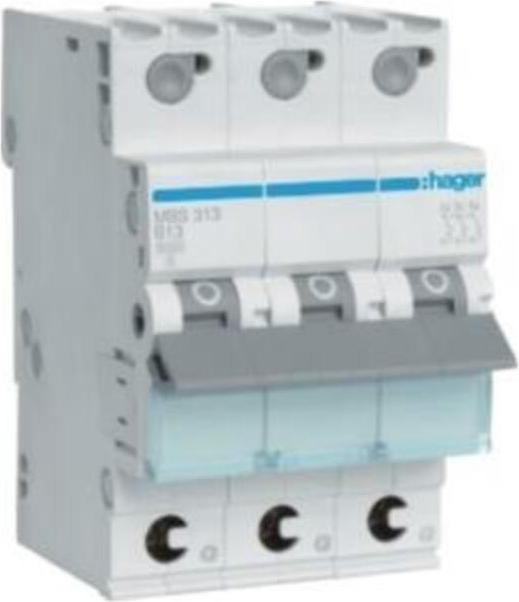

Hager MBS313. Rated current: 13 A, AC input frequency: 50/60 Hz, Nominal current output: 13 A. Type:

Ratings
Delivered between Wed, 30.7. and Sat, 9.8.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Hager Circuit Breaker MBS313

Manufacturer: Hager
Designation: Circuit Breaker 3p, B-13A, 6kA, 3M QC
Type: MBS313
Installation Depth: 70 mm
Tripping Characteristic: B
Number of Poles (total): 3
Number of Protected Poles: 3
Rated Current: 13 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Uimp: 4 kV
Voltage Type: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Rated Switching Capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50-60 Hz
Energy Limitation Class: 3
Flush Mounting: yes
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: yes
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature during Operation: -25 to 70 °C
Connectable Conductor Cross-Section Multi-stranded: 1 to 25 mm²
Connectable Conductor Cross-Section Solid: 1 to 35 mm²
Explosion-Proof: no

Hager Circuit Breaker MBS313: additional details
3-pole circuit breaker, 6kA, B-characteristic, 13A, QuickConnect, 3 modules. Circuit breaker with QuickConnect terminal according to DIN EN 60898-1, outgoing up to 16A and incoming for distribution up to 63A, with time-delayed thermal tripping for overload protection and electromagnetic tripping for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail assembly by releasing the DIN rail quick fastening. EAN: 3250614314872.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
70 mm
Width
52.50 mm
mounting style
Flush-mounted
number of poles
3
Item number
30441548

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MBS313
Release date
19.4.2021

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Flush-mounted
number of poles
3
Tripping characteristic
B
Rated current
13 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
52.50 mm
Height
83.40 mm

Package dimensions

Length
8.60 cm
Width
6.90 cm
Height
5.30 cm
Weight
278 g
