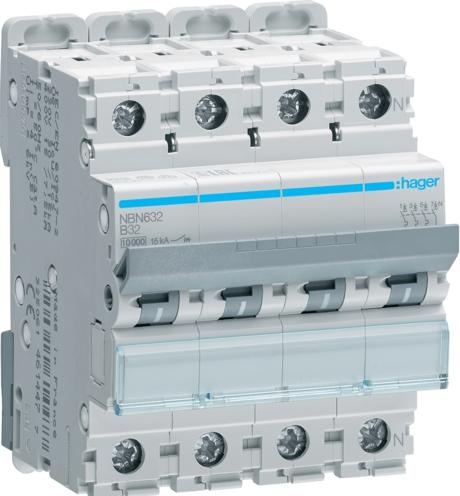

The HAG NBN632 LS switch is a reliable circuit breaker designed for use in electrical installations. With a rated voltage of 400 V and a rated current of 32 A, this switch provides effective protection against overloads and short circuits. It meets the requirements of the standard DIN EN 60898-1 and offers touch protection according to IP2x, making it a safe choice for various applications. The switch is equipped with a time-delayed thermal release that ensures overload protection, as well as an electromagnetic release for short circuit protection. Additionally, the NBN632 allows for easy installation and adjustment, as it is suitable for retrofitting additional devices. The option for labeling directly on the device and the individual removal from the phase rail connection by unlocking the DIN rail quick fastening enhance user-friendliness and flexibility.
Circuit breaker type | Miniature circuit breaker |
Length | 70 mm |
Width | 70 mm |
number of poles | 4 |
Mounting type | Flush-mounted |
Item number | 32109542 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | NBN632 |
Release date | 16.11.2022 |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
number of poles | 4 |
Tripping characteristic | B |
Rated current | 32 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Protection type (IP code) | IP20 |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
Width | 70 mm |
Height | 83 mm |
