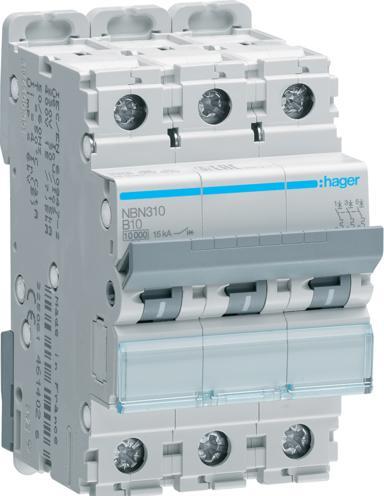

Hager HAG NBN310 circuit breaker 3p B 10A 10kA 3m 3PLE 83x52,5x70mm

The HAG NBN310 LS switch is a reliable circuit breaker designed for use in electrical installations. With a rated voltage of 400 V and a rated current of 10 A, this switch provides effective protection against overloads and short circuits. It meets the requirements of the standard DIN EN 60898-1 and offers touch protection according to IP2x, making it a safe choice for various applications. The switch is equipped with a time-delayed thermal trip for overload protection, as well as an electromagnetic trip for short circuit protection. It is designed for flush mounting, and the switch allows for easy labeling directly on the device. Additionally, it is suitable for the subsequent installation of additional devices, which increases flexibility in application.

• 3-pole circuit breaker with a tripping characteristic B
• Suitable for use in AC systems with a rated voltage of 400 V
• Equipped with a time-delayed thermal trip and an electromagnetic trip
• Easy installation and labeling directly on the device
• Complies with the standards DIN EN 60898-1 and IP2x for enhanced safety.
