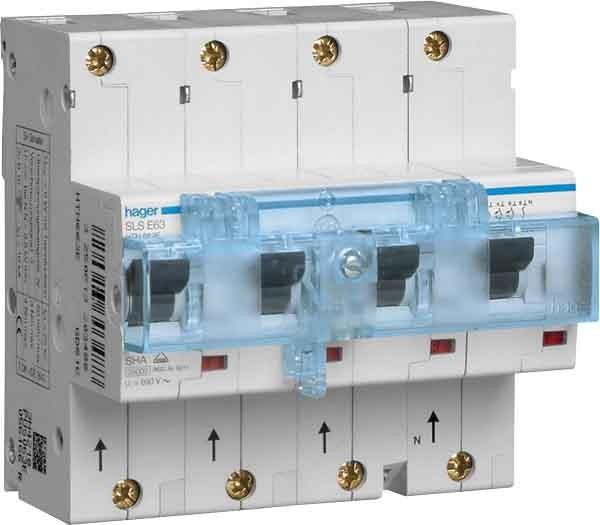

SLS switch 4-pole 3P+N E-characteristic 80A for DIN rail mounting. SH switch according to DIN VDE 0641-21 and dimensional standard DIN 43880 size 2. SLS available in 1- or 3-pole design, single-pole switching, with separate contact position indicator. For direct mounting on DIN rail. The standard mechanism allows for the following lockouts: for the customer against accidental or intentional switching, for the installer with a padlock when working in the system, for the network operator with sealing wire, padlock, or special key.
Circuit breaker type | Miniature circuit breaker |
Length | 85 mm |
Width | 108 mm |
number of poles | 4 |
Mounting type | Top-hat rail |
Item number | 32110906 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | HTN680E |
Release date | 16.11.2022 |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Top-hat rail |
number of poles | 4 |
Tripping characteristic | E |
Rated current | 80 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 690 V |
Protection type (IP code) | IP20 |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 85 mm |
Width | 108 mm |
Height | 110 mm |
