Hager HAG ADZ363D FI-LS 3X 1P+N 6kA C-13A 30mA Type A QC

1Ratings
BrandMore from Hager
Delivered between Fri, 22.5. and Thu, 4.6.
More than 10 pieces in stock at supplier
free shipping

Rated current2

Product details

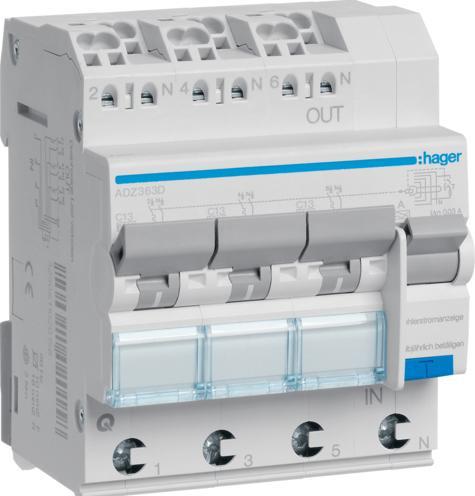

The Hager ADZ363D FI-LS 3X 1P+N 6kA C-13A 30mA Type A QC is a highly advanced residual current circuit breaker designed specifically for use in 230 V AC circuits. This switch combines the functions of a circuit breaker and a residual current device in a compact housing. It meets the requirements of DIN EN 61009-1 and provides a reliable protection solution for electrical installations. With a rated current of 13 A and a rated residual current of 30 mA, it ensures effective protection against overloads and leakage currents. The QuickConnect terminals allow for easy and quick installation, while the touch protection according to IP2x offers additional safety. The switch is suitable for mounting on a DIN rail and provides the option for labeling directly on the device, facilitating identification and use.

  • Easy individual removal from the phase rail connection
  • Touch protection according to IP2x for increased safety
  • Suitable for retrofitting additional devices
  • Blue test button for easy functionality check
  • VDE certified for high quality standards.

Key specifications

Circuit breaker type
Fault current circuit breaker, Miniature circuit breaker
Mounting type
Flush-mounted
number of poles
4
Length
70 mm
Width
70 mm

General information

Item number
32155664
Manufacturer
Hager
Category
Residual-current device
Manufacturer No.
ADZ363D
Release date
16.11.2022

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker, Miniature circuit breaker
Mounting type
Flush-mounted
number of poles
4
Tripping characteristic
C
Rated current
13 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Poland

Voluntary climate contribution

CO₂ emissions
22.01 kg
Climate contribution
CHF 0.52

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
70 mm
Width
70 mm
Height
83 mm
Weight
420 g

Package dimensions

Length
8.20 cm
Width
8.10 cm
Height
9.40 cm
Weight
417 g

30-day right of return
24 Months Warranty (Bring-in)
