Hager Ground fault circuit interrupter

1Ratings
BrandMore from Hager
Delivered between Thu, 13.11. and Mon, 17.11.
8 pieces in stock at third-party supplier
Supplied by
free shipping

Residual current (rated differential current)2

Product details

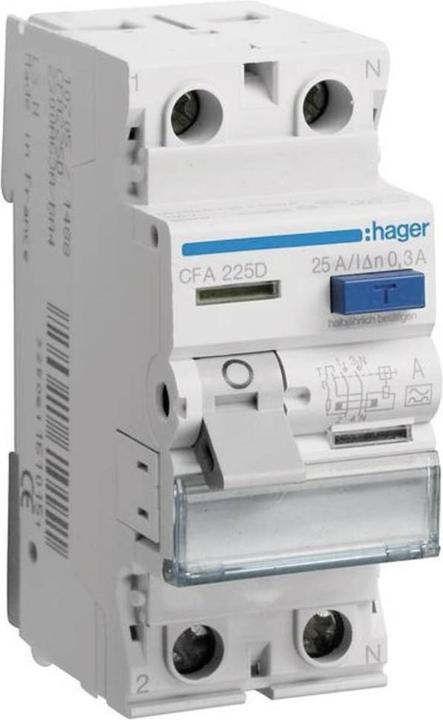

Hager RCD CFA225D

Manufacturer: Hager
Description: RCD 2-pole 25A/300mA, 6kA
Type: CFA225D
Number of poles: 2
Rated voltage: 230 V
Rated current: 25 A
Rated residual current: 0.3 A
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Power loss: 1.3 W
Mounting type: DIN rail
Residual current type: A
Selective type: no
Short-time delayed type: no
Short-circuit strength (Icw): 6 kA
Surge current strength: 0.25 kA
Voltage type: AC
With locking device: yes
Frequency: 50 Hz
Additional devices possible: yes
Protection class (IP): IP20
Width in division units: 2
Installation depth: 70 mm
Ambient temperature during operation: -25..40 °C
Degree of pollution: 2
Connectable conductor cross-section multi-stranded: 1..16 mm²
Connectable conductor cross-section single-stranded: 1..25 mm²
RAL number (similar): 7005
Explosion-proof: no

Hager RCD CFA225D: Additional details
2-pole residual current circuit breaker 6kA 25A 300mA Type A. Residual current device (RCD) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with Bi-Connect terminals at the bottom, external blue test button, and residual current indicator. Suitable for retrofitting additional devices. Connection terminals with wire insertion protection, labeling option directly on the device. EAN: 3250611610151.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
90 mm
Width
2 mm
number of poles
2
Mounting type
Top-hat rail
Item number
21252541

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
CFA225D
Release date
22.6.2022

Colour

Colour
Grey, White
Exact colour description
Grey, White

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
Mounting type
Top-hat rail
number of poles
2
Tripping characteristic
A
Rated current
25 A
Rated current
0.3 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
0.30 A
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
90 mm
Width
2 mm
Height
100 mm
Weight
190 g

Package dimensions

Length
10 cm
Width
8 cm
Height
4 cm
Weight
180 g
