Hager FI/LS switch

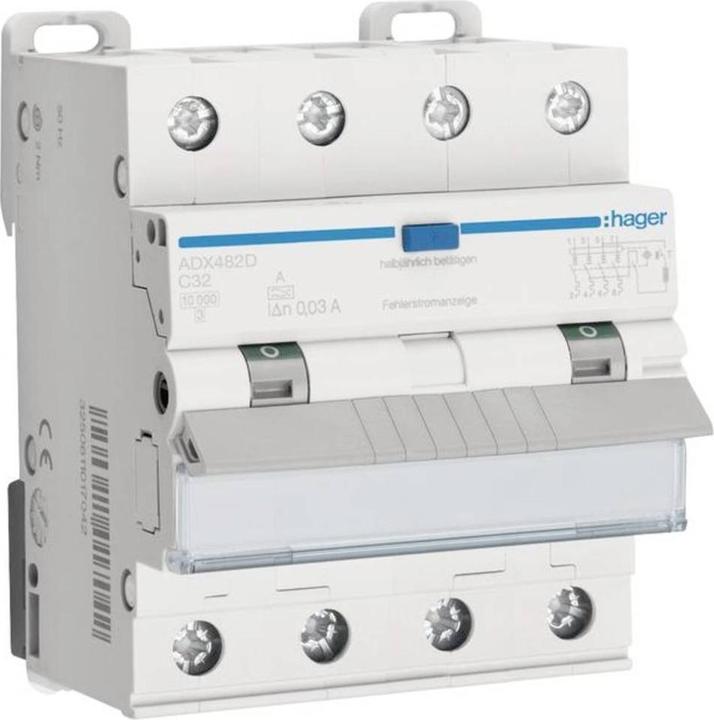

Hager FI/LS switch ADX482D Manufacturer: Hager Designation: FI/LS switch 4-pole, 10kA Type: ADX482D Number of poles (total): 4 Number of fused poles: 4 Rated voltage: 400 V Rated insulation voltage Ui: 500 V Rated impulse withstand voltage Uimp: 4 kV Rated current: 32 A Rated residual current: 0.03 A Residual current type: A Energy limitation class: 3 Rated breaking capacity Icn according to EN 61009-1: 10 kA Tripping characteristic: instantaneous Surge current withstand: 3 kA Voltage type: AC Frequency: 50 Hz Tripping characteristic: C Switching neutral: no With interlocking device: yes Overvoltage category: 3 Pollution degree: 2 Ambient temperature during operation: -25..40 °C Width in pitch units: 4 Mounting depth: 70 mm Flush mounting: yes Fault trip protection: no Protection class (IP): IP20 Connectable conductor cross-section solid: 1..25 mm² Connectable conductor cross-section stranded: 1..16 mm²Hager RCD ADX482D: more detailsResidual current circuit breaker 4P 10kA C-32A 30mA type A. Residual current circuit breaker according to DIN EN 61009-1 (VDE 0664-20) with 4-pole miniature circuit breaker for 400 V three-phase circuits and a residual current circuit breaker in a compact housing. Contact protection to IP2x according to DIN VDE 0106 part 100, blue test button and residual current indication. Simple individual removal from the phase busbar system. With VDE mark. Suitable for retrofitting of additional equipment. Labeling option directly on the device. , EAN: 3250611017073.
