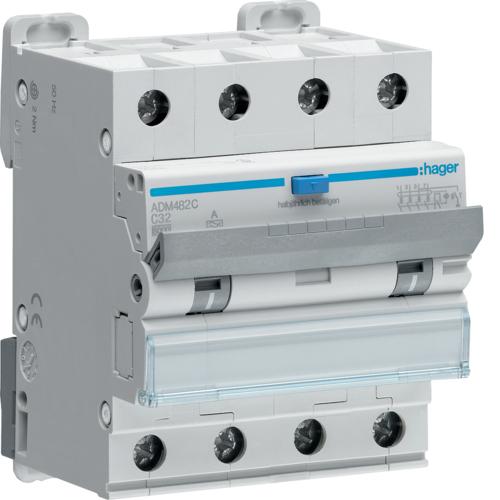

Hager FI/LS 4Pol. 3P+N 32A/30mA

Ratings
Delivered between Tue, 10.6. and Thu, 12.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

The combined residual current circuit breaker from Hager, model FI/LS 4Pol. 3P+N 32A/30mA, offers a reliable solution for protecting electrical installations. With a tripping characteristic of class C, this breaker is ideal for applications that require a slow response to overload currents. The breaker is designed for mounting on a DIN rail and features a compact design that allows for easy installation. A test button and a residual current indicator through a blue display window provide additional safety and user-friendliness. The breaker is rated for a nominal voltage of 400 V and offers a rated current of 32 A, making it a robust choice for various electrical systems.

  • Combination of residual current and circuit breaker
  • Test button for easy functionality check
  • Residual current indication through blue display window
  • Suitable for mounting on DIN35 rail
  • Protection class IPX2 for additional moisture protection.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
70 mm
Width
71 mm
mounting style
Top-hat rail
number of poles
4
Item number
34612922

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
ADM482C
Release date
14.6.2023
Sales rank in Category Residual-current device
42 of 14979

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
C
Rated current
32 A
Rated voltage
400 V
voltage type
AC/DC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IPX2

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
71 mm
Height
84 mm
