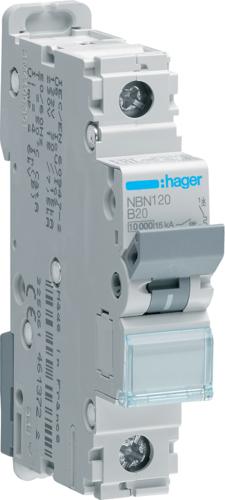

Hager Circuit breaker NBN120 1 pole 10kA/15kA B-20A 1M
Free shipping starting at 50.–
Circuit breaker, 10kA 15kA B-20A 1M. Circuit breaker according to DIN EN 60898-1 VDE 0641-11 with delayed thermal trigger for overload protection and electromagnetic trigger for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening. NBN120.
Circuit breaker type | Miniature circuit breaker |
Length | 100 mm |
Width | 90 mm |
number of poles | 1 |
Mounting type | Top-hat rail |
Item number | 23496025 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | NBN120 |
Release date | 13.10.2022 |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Top-hat rail |
number of poles | 1 |
Tripping characteristic | B |
Rated current | 20 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 100 mm |
Width | 90 mm |
Height | 230 mm |
