Product details

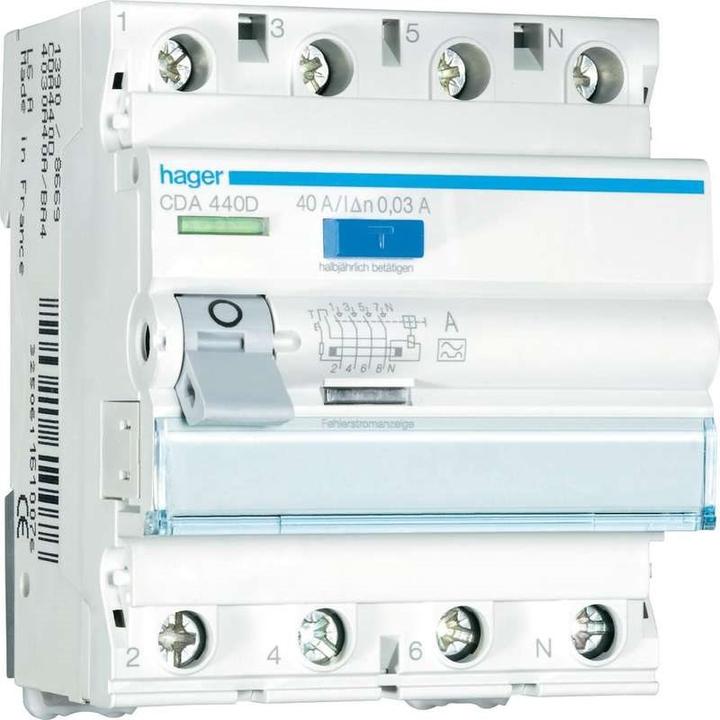

Hager RCD CDA440D
Manufacturer: Hager
Designation: 4-pole RCD 40A/30mA, 6kA
Type: CDA440D
Number of poles: 4
Rated voltage: 400 V
Rated current: 40 A
Rated residual current: 0.03 A
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Power loss: 6.5 W
Mounting type: DIN rail
Residual current type: A
Selective type: no
Time-delayed type: no
Short-circuit strength (Icw): 6 kA
Surge current strength: 0.25 kA
Voltage type: AC
With locking device: yes
Frequency: 50 Hz
Additional devices possible: yes
Protection class (IP): IP20
Width in division units: 4
Installation depth: 70 mm
Ambient temperature during operation: -25..40 °C
Degree of pollution: 2
Connectable conductor cross-section multi-stranded: 1..16 mm²
Connectable conductor cross-section single-stranded: 1..25 mm²
RAL number (similar): 7005
Explosion-proof: no
Hager RCD CDA440D: additional details
4-pole residual current circuit breaker 6kA 40A 30mA Type A. Residual current circuit breaker (RCD) according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664-11) with Bi-Connect terminals at the bottom, external blue test button, and residual current indicator. Suitable for retrofitting additional devices. Connection terminals with wire insertion protection, labeling option directly on the device.
