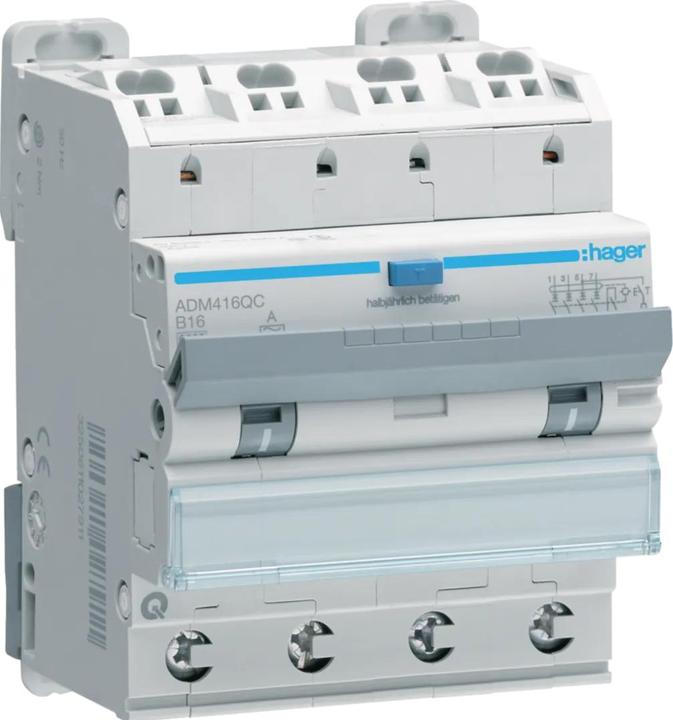

Residual current circuit breaker 4P 6kA B-16A 30mA Type QCQB. Residual current circuit breaker according to DIN EN 61009-1 VDE 0664-20 with overload protection of the neutral conductor through a 4-pole circuit breaker for 400 three-phase circuits and a residual current protection circuit in a compact housing. QuickConnect spring-loaded terminal according to DIN EN 60898-1 VDE 0641-11, at the outgoing and incoming, blue test button and residual current indicator. Easy individual removal from the phase rail connection via top and bottom DIN rail sliders. Suitable for retrofitting additional devices. Labeling option directly on the device. ADM416QC.
Circuit breaker type | Miniature circuit breaker |
Length | 70 mm |
Width | 71 mm |
number of poles | 4 |
Mounting type | Flush-mounted |
Item number | 31982356 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | ADM416QC |
Release date | 24.10.2022 |
Colour | White |
Exact colour description | White |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Flush-mounted |
number of poles | 4 |
Tripping characteristic | B |
Rated current | 16 A |
Rated current | 0.03 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 0.03 A |
Protection type (IP code) | IPX2 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
Width | 71 mm |
Height | 84 mm |
Length | 10 cm |
Width | 8 cm |
Height | 8 cm |
Weight | 500 g |
