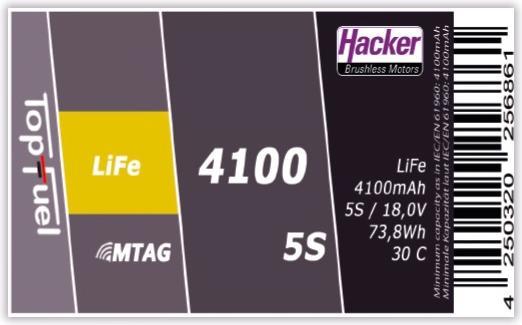

Hacker RC Battery LiFe 4100 mAh 16.5 V 30C TopFuel MTAG

Product Description and Features

The TopFuel LiFe cells are designed in a flat, LiPo-like form factor, making them ideal for fitting into almost any existing battery compartment.

The main difference compared to LiPo and LiIon batteries is the lower voltage level of 3.3 volts to a maximum of 3.6 volts per cell. LiFe batteries are significantly less sensitive to under- and over-voltage. They are characterized by a very constant and flat discharge curve as well as a very high cycle stability.

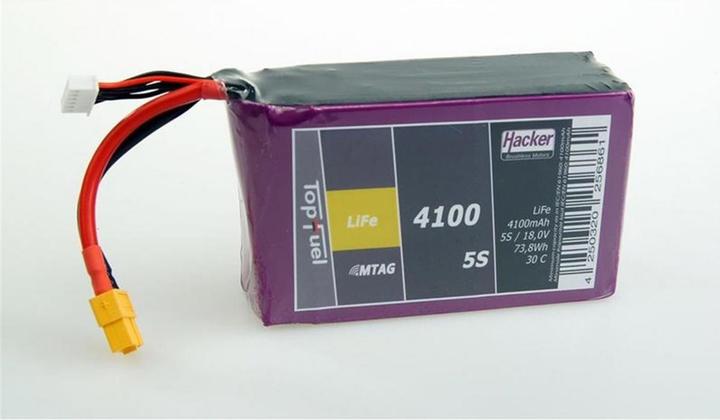

The battery comes pre-soldered with the XT60 connector system.

Connections

• XT60 connector with gold contacts, suitable for continuous loads of up to 60 amps
• XH balancer connector

Internal Chip for Battery Telemetry

The passive MTAG chip stores battery data such as type, number of cells, capacity, C-rate, or battery ID. These values can be read out with an external NFC sensor if needed and transferred to the transmitter telemetry.

Additionally, the built-in MTAG chip provides the capability to manually or automatically count and store charge cycles. When using multiple identical batteries in series or parallel operation, this enables more effective active battery management.

Note: It is up to the user whether they wish to utilize the MTAG function or not. The TopFuel battery can be used without MTAG like any regular battery.
