Grothe LS 1033/285
Product details

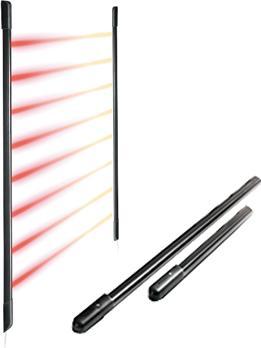

Light barrier set for indoor and outdoor monitoring
The light barriers can be installed between windows and roller shutters, offering a maximum range of 20 m indoors and 10 m outdoors. Detection is achieved through eight light beams with a wavelength of 940 nm. It is possible to install multiple light barriers in parallel or in series. Synchronization occurs optically.
Aligning the light barriers is straightforward and does not require additional calibration instruments. Three different operating modes are available: point-to-point, parallel, and crossed beam bundles. The housing is made of robust polycarbonate, providing high impact and weather resistance. Additionally, the light barrier features an alarm memory. The normally closed alarm contact is suitable for use in alarm systems.
The light barrier is equipped with an opening and theft protection and can be used in protected outdoor areas.
Automation functions | Alarm |
Item number | 34745747 |
Manufacturer | Grothe |
Category | Home automation |
Manufacturer no. | 1033/285 |
Release date | 17.5.2023 |
Automation type | Sensor |
Automation functions | Alarm |
Range | 20 m |
Application range | Indoor, Outdoor |
Compatibility | Amazon Alexa, Apple HomeKit |
Electric current output | 0.13 A |
Power supply | Electrical connection |
Smart home | Compatible |
Requires Smart Home Hub | No |
Smart home ecosystem | Amazon Alexa, Apple Home, Google Assistant |
Communication standard | IFTTT |
Country of origin | China |
CO₂ emissions | 29.26 kg |
Climate contribution | CHF 0.70 |
Scope of delivery | Light gate |
Length | 23 mm |
Width | 25 mm |
