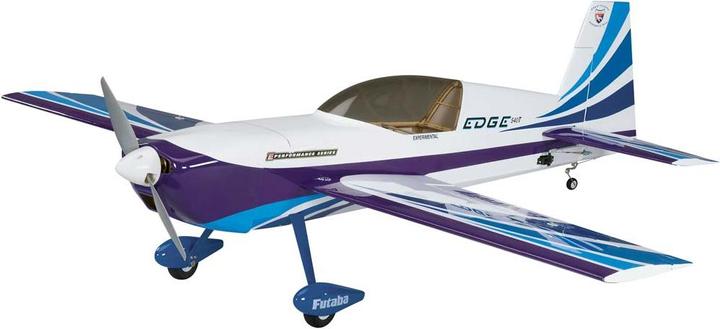

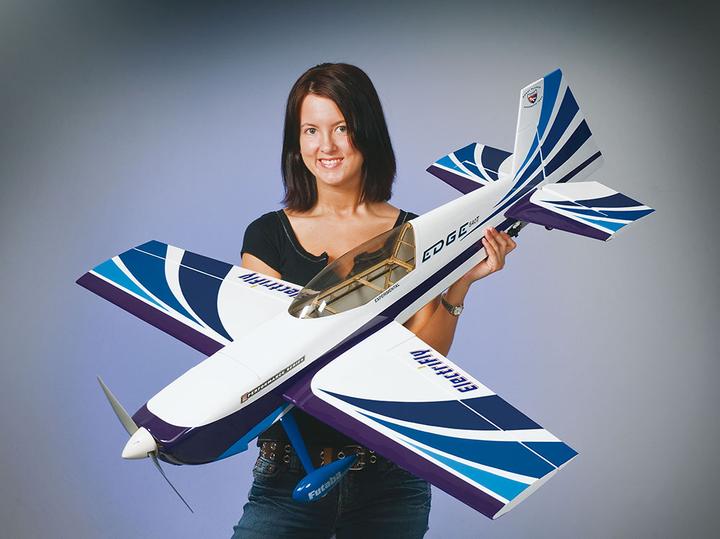

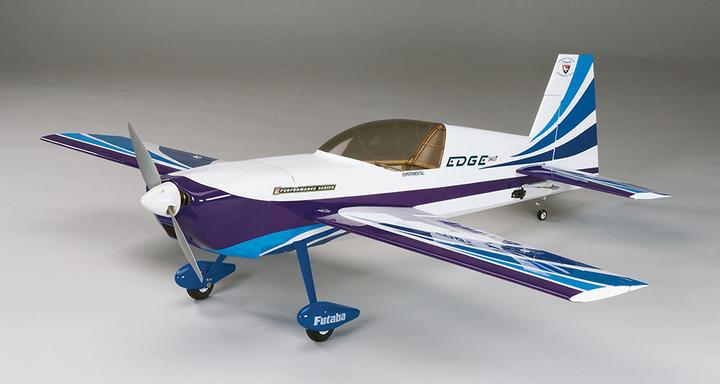

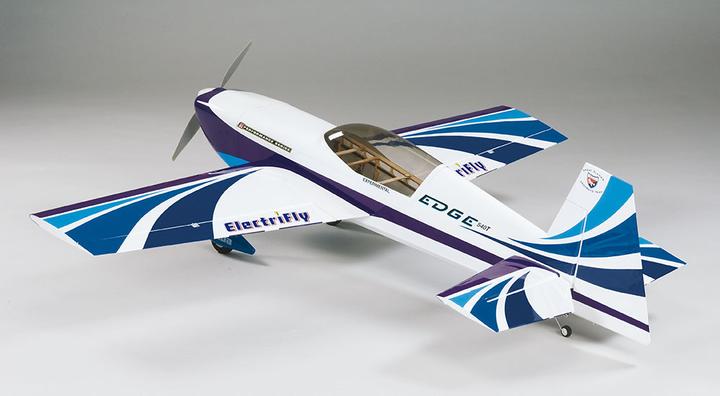

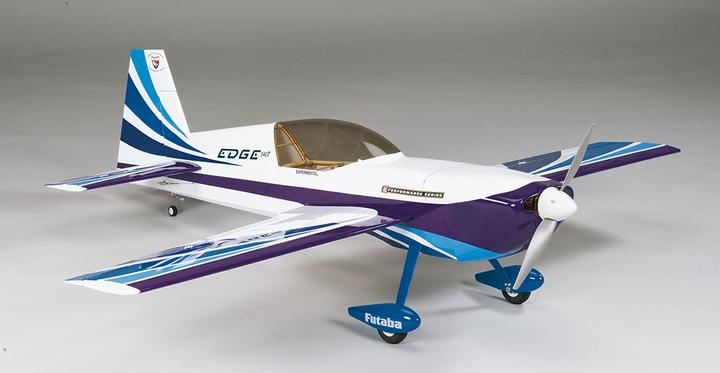

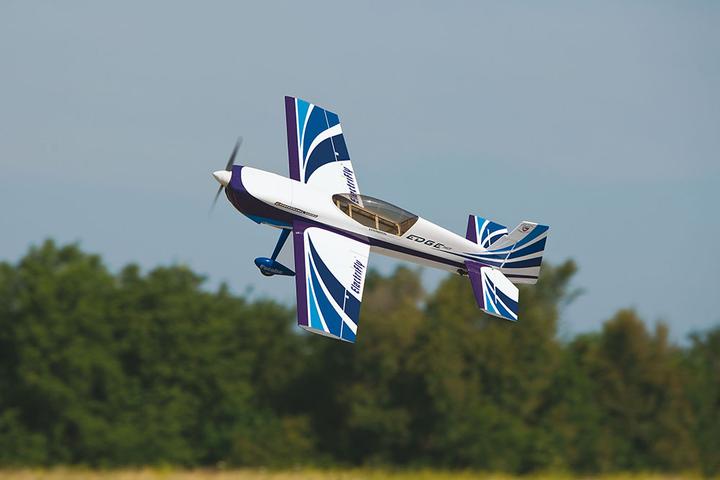

Great Planes Edge 540T 50 3D EP ARF

From carbon fiber, selected woods, and light GFK parts, an ARF model was provided, which ranks among the most exclusive aerobatic models on the market. Profiled tail, ailerons, and rudders with hinges, along with the pre-installed engine mount and canopy ring, are just a few examples of the attention paid to detail and prefabrication on this Edge 540T. No effort has been spared to construct a spirited aerobatic pilot that even the most demanding pilot will appreciate. Thanks to extensive pre-assembly and covering with MONOKOTE film, it only takes a few hours from unpacking to the first flight.

Technical data:
Span width: 1260 mm
Length: 1220 mm
Wing area: 31.6 dm²
Weight: 1470-1590 g
Wing loading: 46-49 g/dm²

RC function:
Aileron, Elevator, Rudder, Engine

Required:

• 4-channel remote control
• Servos, 13 x 28 x 29.7 mm, from 3 kg-cm actuating force, 4 pieces
• 800 kV brushless motor
• 45A motor controller
• APC propeller, 12 x 6 inch
• Flight battery

Recommended accessories:

• RC set TTX650
• Brushless motor RimFire .32
• ElectriFly Silver Series 45A brushless controller
• ElectriFly LiPo battery 4S 14.8 V 2200 mAh 30C
• APC 12 x 6 thin electric propeller

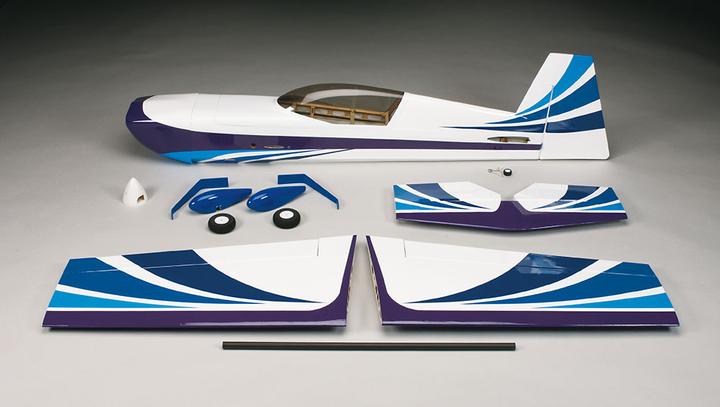

Scope of delivery:

• Wooden fuselage, wings, and tail units covered with MONOKOTE film
• Painted GFK engine hood
• GRP chassis with wheels and GRP wheel trim
• Detailed building instructions
• Decal sheet
• Accessories for RC and rudder linkage.
