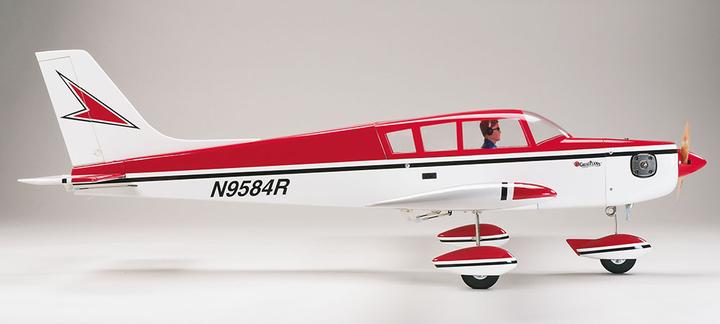

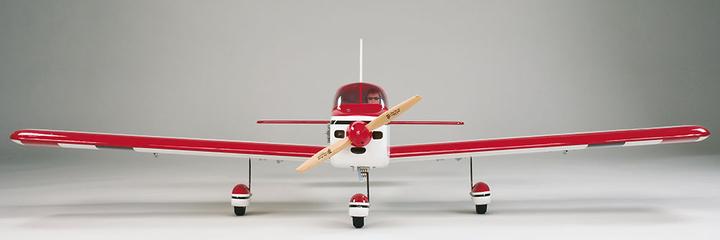

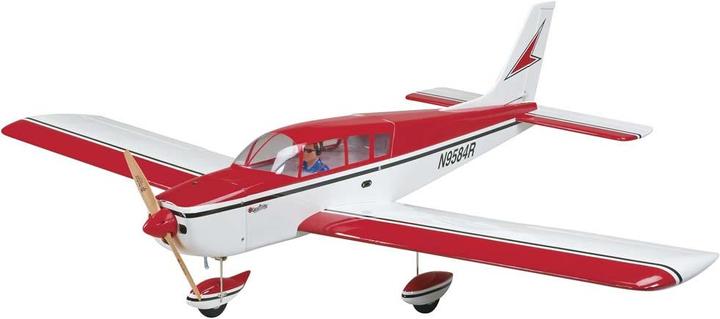

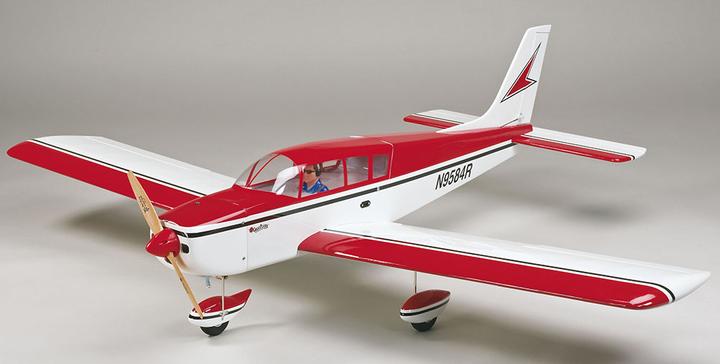

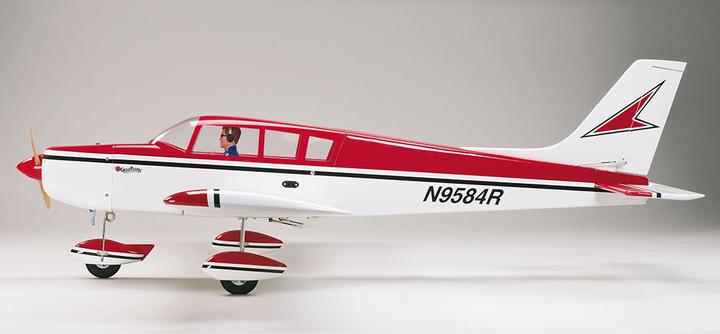

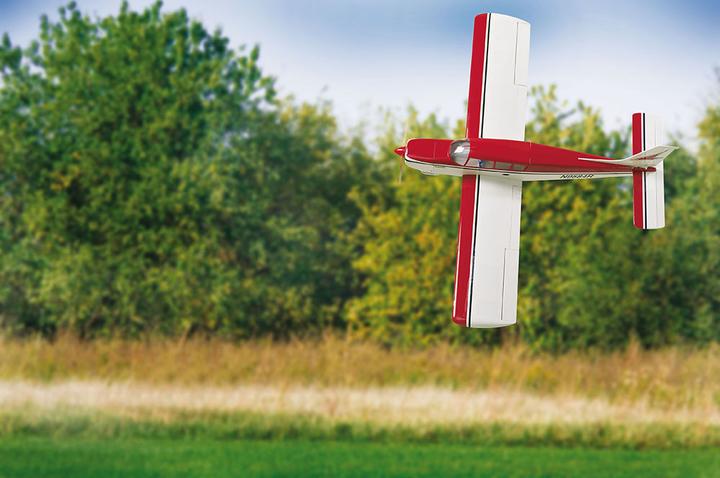

Great Planes Cherokee 40-56 ARF

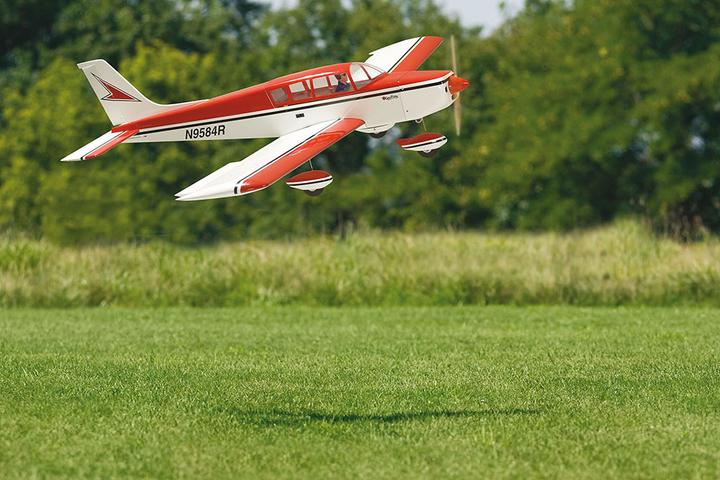

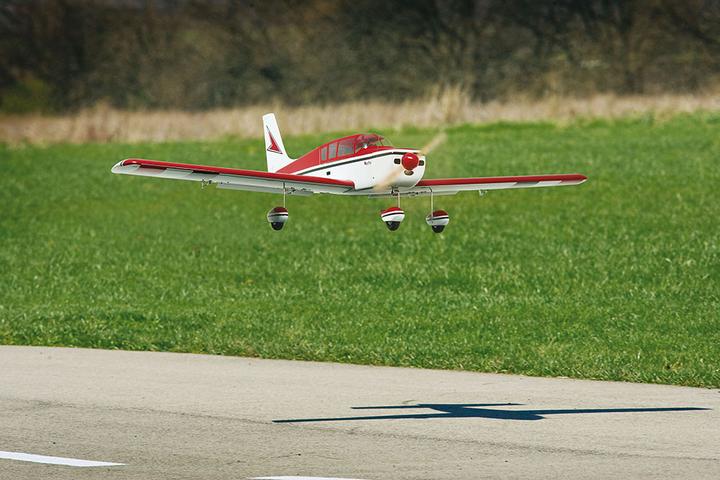

The replica of the Cherokee, a single-engine sport and touring aircraft, is particularly distinguished by its excellent flying characteristics. The Cherokee is also recommended as an aileron trainer. The steerable nose gear and flaps make takeoff and landing easier with this beautiful model. Additionally, construction is quick due to the high level of prefabrication typical of ARF models. With the Cherokee, you have the option to choose between the classic propulsion variant with a combustion engine or a brushless electric motor.

Features:

• Lightweight, robust wooden construction
• Already covered with MONOKOTE film
• Generous access to the RC components
• Steerable nose wheel
• Short construction time thanks to the high degree of prefabrication

Technical Data:
Wingspan: 1055 mm
Length: 800 mm
Wing area: 17.4 dm2
Weight: 650 - 820 g
Wing loading: 38-74 g/dm2

RC Functions:
Ailerons, elevator, rudder, motor

Required:

• 4-channel remote control system
• Standard servos, 4-7 pieces

For Electric Drive:

• 800 kV brushless motor
• 60A motor controller
• APC propeller, 10 x 6 inches
• 5S flight battery

For Combustion Engine:

• 7.59 cc 2-stroke or 11.5-12 cc 4-stroke
• Receiver battery
• Propeller

Recommended Accessories:

• Item No.: TACJ2652, TACTIC TTX650 computer remote control system
• Item No.: TACL0625, TACTIC TR625 6-channel SLT receiver with diversity antenna
• Item No.: TACM0235, TACTIC TSX35 servo
• Item No.: GPMG4700, Brushless motor RimFireTM .32
• Item No.: HW020630, Hobbywing FLYFUN 60 A brushless controller or
• Item No.: GPMM1850, ElectriFlyTM Silver Series 60A brushless controller
• Item No.: FPWP3335, FlightPower 5S 18.5V 3350 mAh 30C LiPo battery

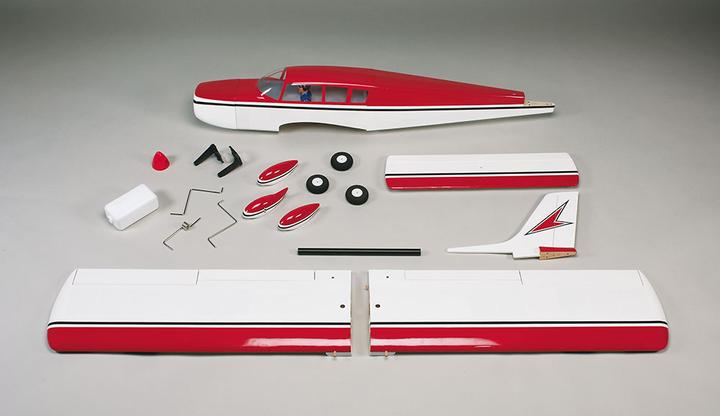

Delivery Includes:

• Wooden fuselage, wings, and tail surfaces covered with MONOKOTE film
• Painted fiberglass motor cowl
• Landing gear with wheels and fiberglass wheel fairings
• Detailed assembly instructions
• Decal sheet
• Motor mount for electric and combustion engines
• Accessories for RC and control surface linkage.
