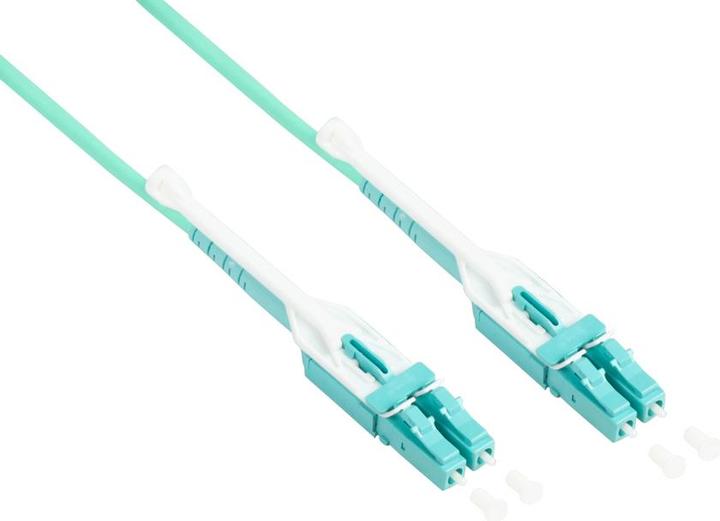

Good Connections Patch cord FO Duplex OM3 (Multimode, 50/125) LC/LC, UNIBOOT, LSZH, interchangeable polarity

Patch Cable LWL Duplex OM3 (Multimode, 50/125) LC/LC, Uniboot, LSZH, interchangeable polarity, release tab, 3 m fiber optic (LWL) patch cables from Good Connections allow for the connection of various network components while ensuring lossless data transmission. Different quality classes (OMx/OSx) facilitate the qualitative and functional distinction of a fiber optic patch cable.

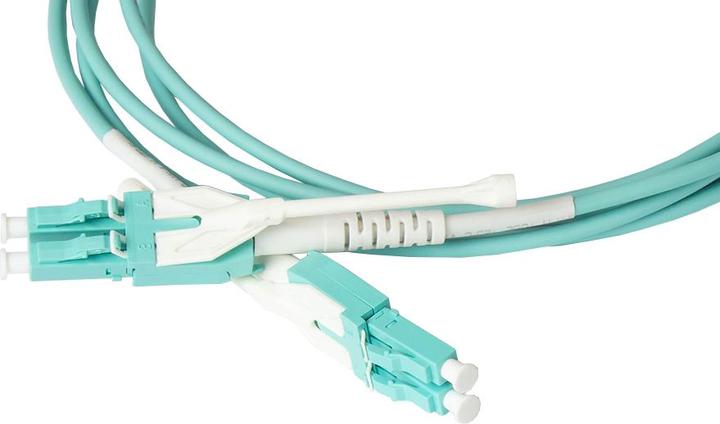

The Uniboot design with release tab or extractor lever allows both conductors to share a single sheath and bend protection. As a result, the Uniboot fiber optic patch cables can save up to 50% space compared to conventional fiber optic cables, depending on the cable diameter. The release tab makes it easier to unplug in panels with high connector density.

High quality standards, 100% testing, and individual measurement protocol: The use of high-quality materials and modern production facilities, along with continuous quality controls during the production process, ensure lossless signal transmission and consistently high quality. Each individual patch cable undergoes testing after assembly. After successful measurement, each patch cable is accompanied by an individual measurement/testing protocol.

Main features:

• Cable length: 3 m
• Fiber type: OM3
• Connector 1: LC
• Connector 2: LC
• Connector 1 gender: Male
• Connector 2 gender: Male
• Product color: Aqua
• Jacket material: Low smoke halogen-free (LSZH)
• Full duplex: Yes
• Hole diameter: 50 µm
• Coating diameter: 125 µm
• Operating conditions temperature range: 40 - 85 °C
• Bending radius: 7.5 mm
• Quantity per pack: 1 piece(s).
