Good Connections Alcasa

Fiber optic (LWL) patch cables enable the connection of various network components while ensuring lossless data transmission. Different quality classes (OMx/OSx) facilitate the qualitative and functional distinction of a fiber optic patch cable.

The use of high-quality materials and modern production facilities, along with continuous quality control during the manufacturing process, ensures lossless signal transmission and consistently high quality. Each individual patch cable undergoes testing after assembly. Following successful measurement, each patch cable is accompanied by an individual measurement/test report.

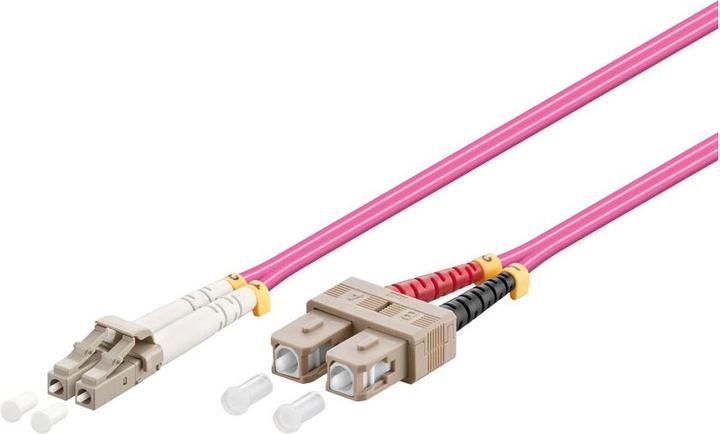

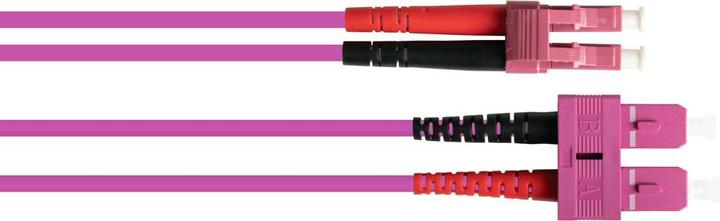

Fiber optic (LWL) duplex patch cable
Connector 1: LC (UPC)
Connector 2: SC (UPC)
Includes dust caps

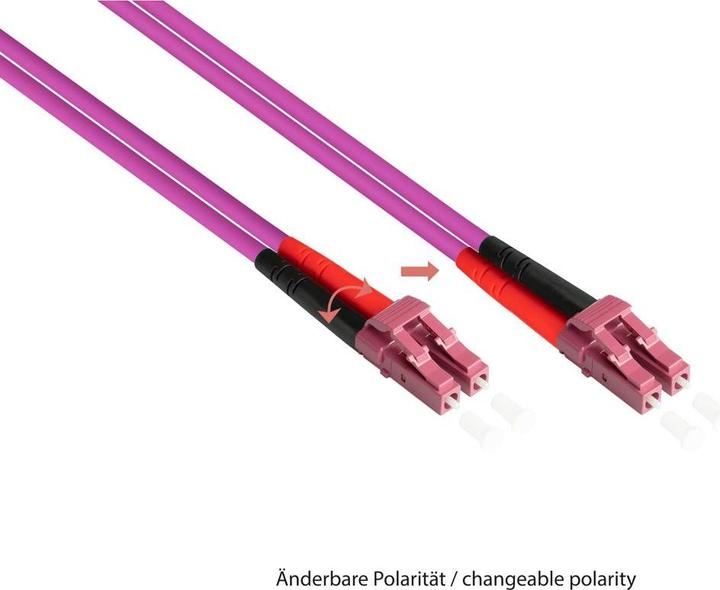

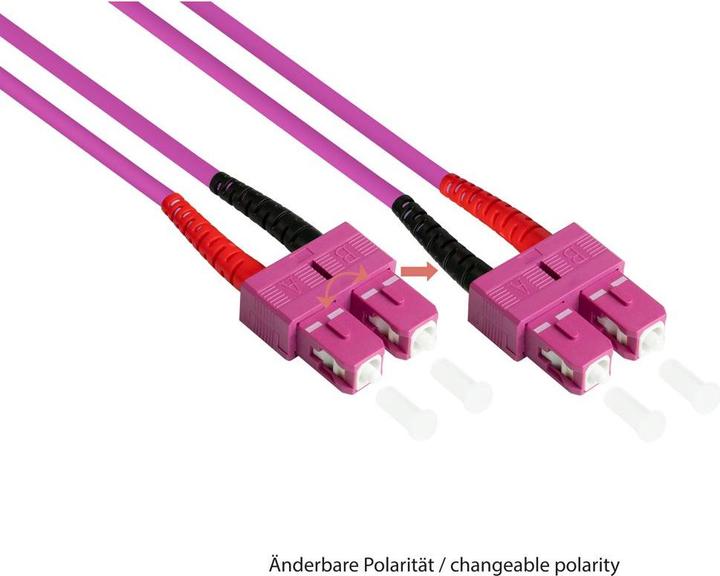

Interchangeable polarity/coding
Attached bend protection sleeve
Fiber quality: OM4
Fiber type: Multimode 50/125µ
Cable structure: Duplex
Cable diameter: 3.0 mm
Sheath material: Halogen-free (LSZH)
Min. bend radius: 7.5 mm
Operating temperature: -40 to +85 °C
Quality: Each cable comes with its own measurement/test report
Color: Violet (OM4)
Length: 5 m

Features

Fiber optic cable connector 1: LC
Fiber optic cable type: Duplex
Fiber optic cable design: Standard
Fiber optic cable length: 5 m
Fiber optic cable connector 2: SC
Fiber optic cable category: OM4.
