Gira Radio

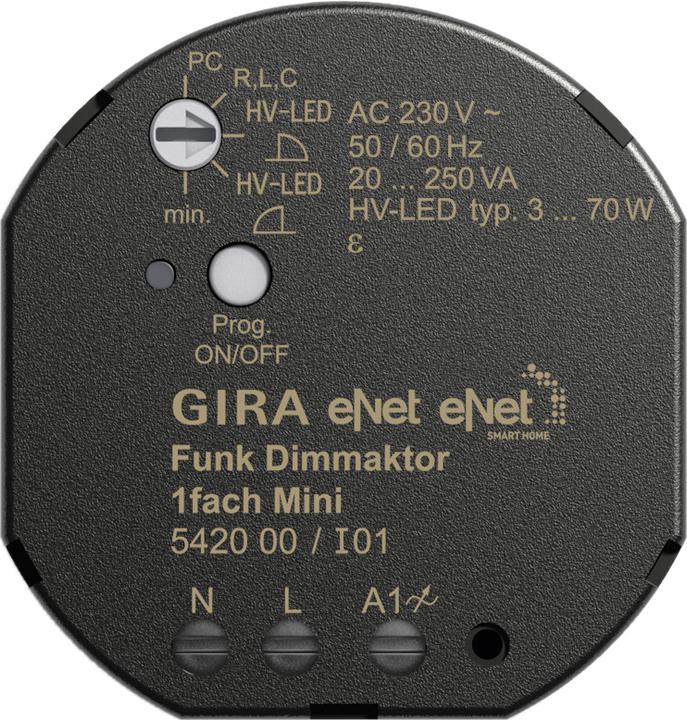

Gira radio dimming actuator Mini 20 542000 Manufacturer: Gira Designation: Radio dimming actuator Mini 20 250VA Type: 542000 Bus system KNX: no Bus system KNX radio: no Bus system radio bus: yes Bus system LON: no Bus system Powernet: no Other bus systems: eNet Design: Dimming actuator Mounting type: flush-mounted With bus coupling: no Extension input: no On-site/manual operation: no With LED display: no Number of outputs: 1 Output power: 250 W Additional power unit can be used: no Load type: universal Max. Switching capacity LED: 70 W Voltage: 230 V Parallel operation possible: no Protection class (IP): IP20Gira wireless dimming actuator Mini 20 542000: further detailsseNet wireless dimming actuator, 1-gang Mini 20 - 250 W VA Features: Can be set with eNet server:: Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0. Operating locks. Update of the device software. The eNet wireless dimming actuator enables switching and dimming of various electrical loads. Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps. Lamp-friendly switch-on. Switch-on and minimum brightness can be stored for each output. Scene operation. Status display with LED. Status feedback to eNet wireless sensors. Short-circuit and overtemperature protection. Automatic or manual setting of the dimming method. Adjustable with eNet server:: Maximum brightness. Dimming method. Dimming speed. Run-on time. Switch-on or switch-off delay. Dimming up or down ramp. Switch-off pre-warning. Permanent on, permanent off. Hotel function. Light control. Repeater function. Localization of the device. Notes : Mounting in device box, surface-mounted housing or in installation adapter. , EAN: 4010337774143.
