Gira 523700

Gira key switch 523700
Manufacturer: Gira
Designation: Key switch flush-mounted
Alarm Connect Type: 523700
Circuit type: Switch 2-pole
Operating type: Key
Composition: Basic element
Number of modules (with modular design): 1
Push button switch: No
Number of actuating rockers: 1
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
With mounting plate: No
Material: Other
Material quality: Other
Halogen-free: No
Antibacterial treatment: No
Surface protection: Other
Colour: Other
Text field/inscription area: No
Illumination: No
Suitable for protection class (IP): IP54
Rated voltage: 12 V
Feedback contact: No
Connection type: Other
Heating switch: No
Washing machine switch: No
Unit width: 72 mm
Unit height: 102 mm
Device depth: 61 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Gira key switch 523700: Further details

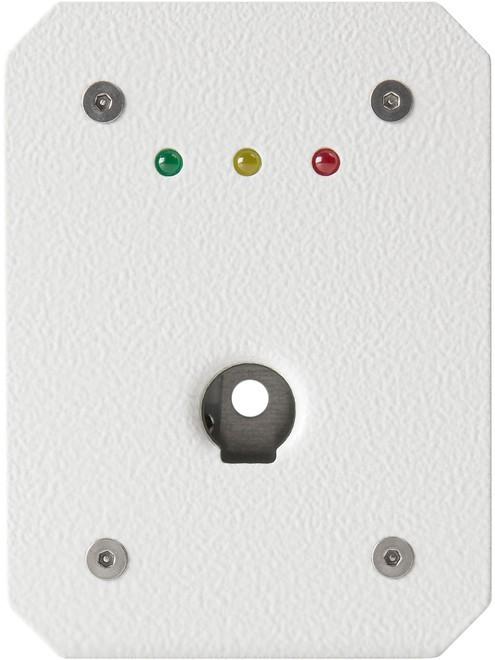

Flush-mounted key switch
Features: For arming and disarming alarm centres. Suitable for use with commercially available profile half cylinder (observe mounting instructions). Sealed housing for indoor and outdoor use. Has two internal, separate switches with changeover contact which can be individually set to permanent or impulse contact. Three LEDs (red, yellow, green) with series resistor and reverse polarity protection can be freely assigned. Integrated buzzer for acknowledgement or refusal indication can be freely assigned. Break-away and lift-off contact for tamper protection. Front drilling protection.
