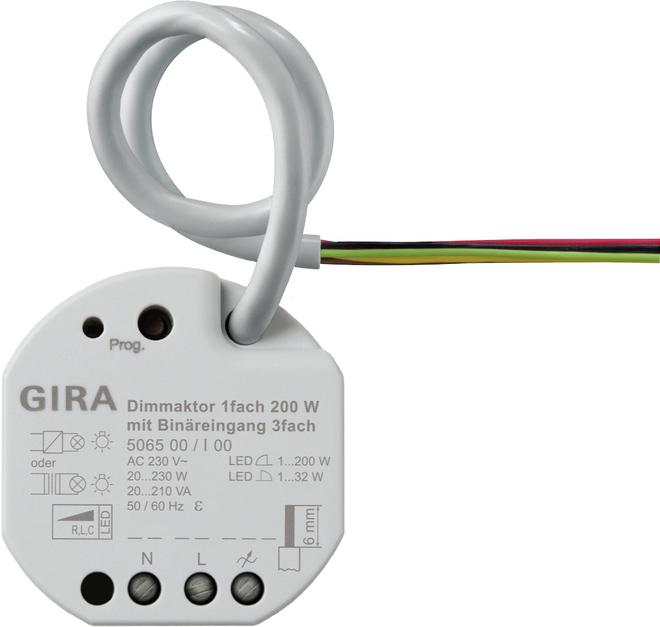

Gira 506500 Dimming actuator 1f 200W UP KNX

The Gira Dimmaktor 506500 is a versatile device designed for controlling and dimming various light sources. With a maximum switching capacity of 200 watts, this dimmer is suitable for incandescent lamps, high-voltage halogen lamps, dimmable high-voltage LED lamps, as well as dimmable compact fluorescent lamps. It offers the option to choose between different dimming principles to ensure optimal adaptation to the respective load. The dimmer is equipped with a binary input, allowing for easy integration into KNX systems. Additionally, it provides extensive functions for adjusting the dimming curve and controlling the dimmable range. Safety is ensured through protection mechanisms such as no-load, short-circuit, and over-temperature protection. With up to eight independent logic functions, both simple and complex logical operations can be realized, making the dimmer a flexible solution for modern lighting control systems.

• Automatic or manual selection of the dimming principle for different load types
• Adjustable dimming curve to match the connected load
• Central control function for up to 6 switching and dimming objects
• No-load, short-circuit, and over-temperature protection
• Up to 8 independent logic functions for complex controls.
