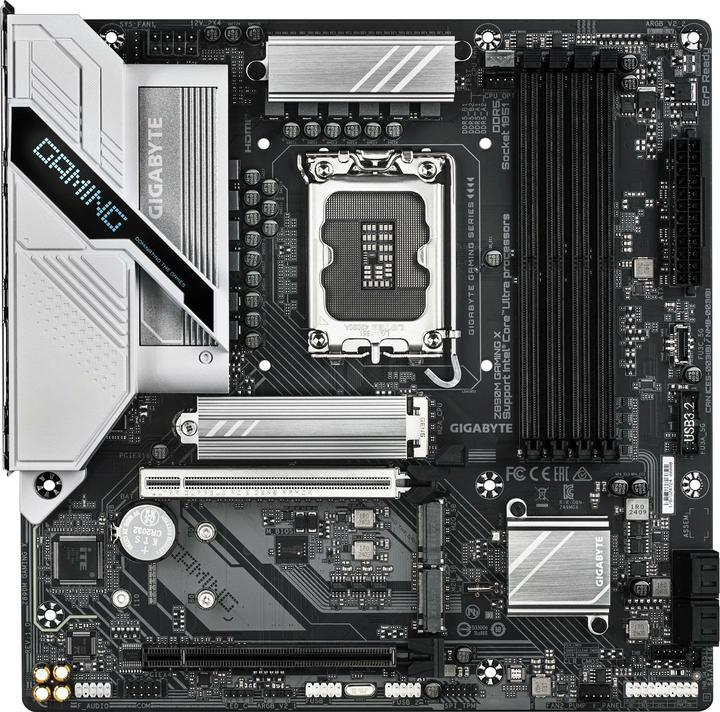

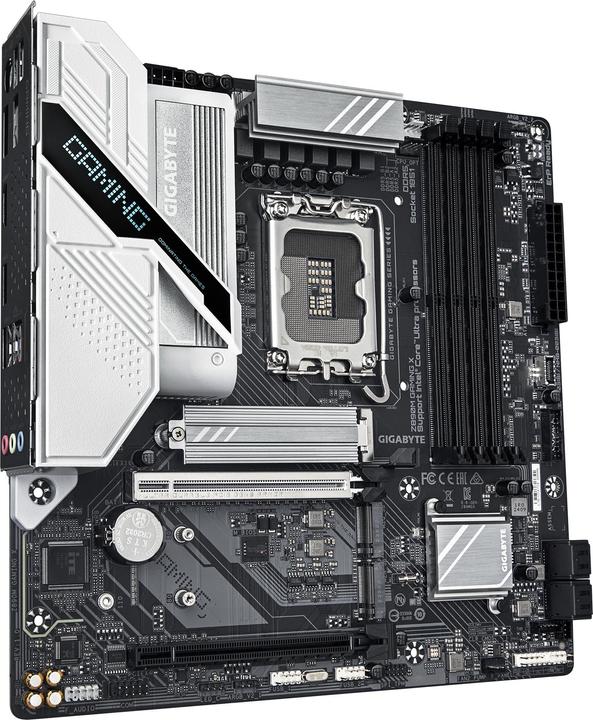

The GIGABYTE Z890M GAMING X is based on the Intel Z890 chipset and supports Intel processors for socket 1851. It has four DDR5 slots for up to 256 GB of RAM.
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, RGB header |
Item number | 51892018 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | Z890M GAMING X |
Release date | 17.7.2025 |
Sales rank in Category Motherboards | 219 of 1035 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1851 |
Chipset | Intel Z890 |
Mainboard features | Clear CMOS Button, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8800 MHz |
Supported memory speed | 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

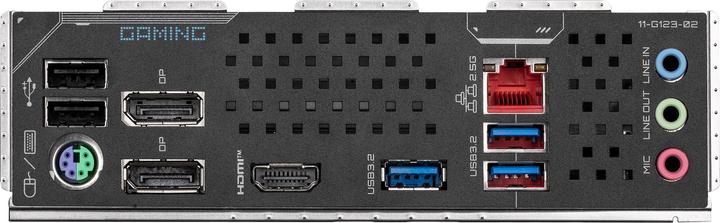

Video connections | DisplayPort (2x) |
Video connection version | Display port 1.2 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x), PCI Express x4 (1x) |
PCI express version (max.) | 5 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (3x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 20+4-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton® Internet Security (OEM version) |
Length | 244 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 1100 g |
Length | 26 cm |
Width | 25.10 cm |
Height | 15.20 cm |
Weight | 1.12 kg |
