Gigabyte Z690M DS3H
LGA 1700, Intel Z690 (DDR4), mATXCurrently out of stock
Free shipping starting at 50.–
Product details

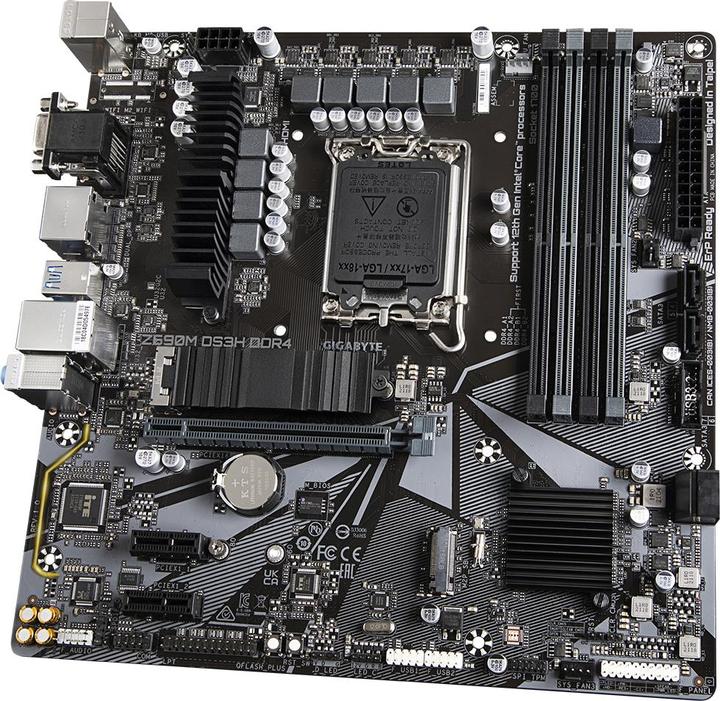

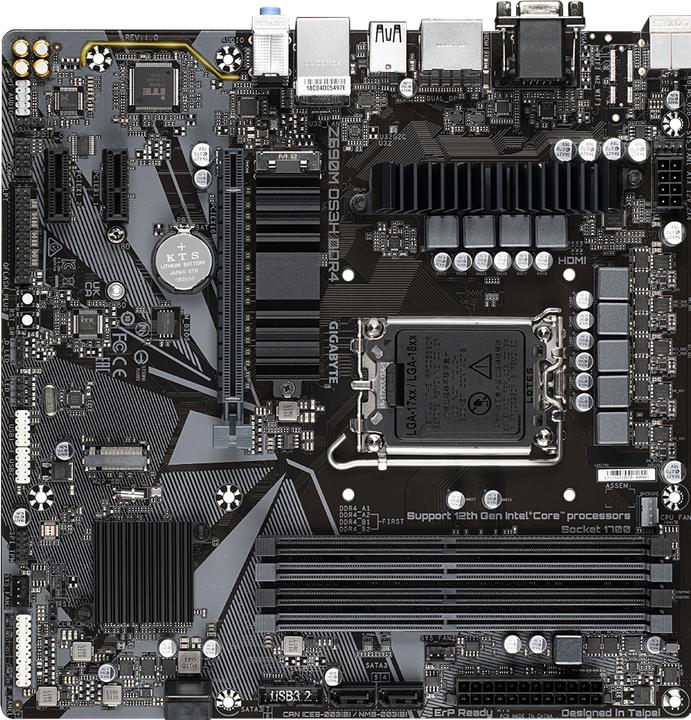

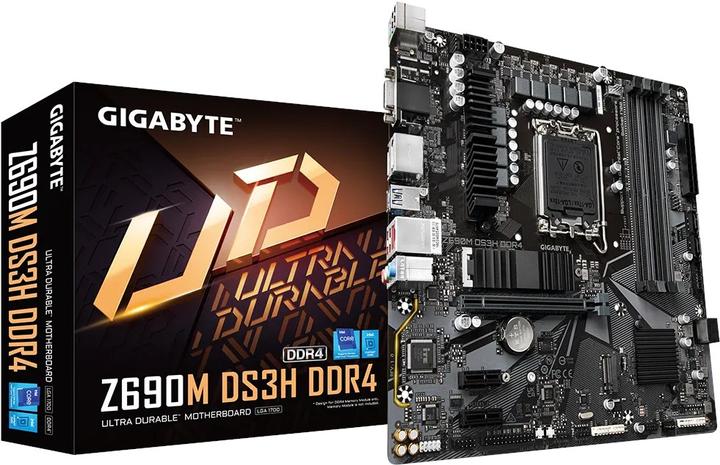

The GIGABYTE Z690M DS3H DDR4 is an mATX motherboard featuring the high-end Intel Z690 chipset and LGA 1700 socket. This motherboard is compatible with 12th and 13th generation Intel Core CPUs, including Alder Lake and Raptor Lake. It supports DDR4 memory with speeds of up to 5,333 MHz and is well-suited for overclocking thanks to its 6+2+1 phase power design.
Mainboard features | Front panel audio connector |
Processor family | Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen |
Number of memory modules (RAM) | 4x |
Memory type | DDR4-RAM |
Internal connection options | S-ATA III (4x) |
Item number | 19876359 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | Z690M DS3H DDR4 |
Release date | 31.1.2022 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel Z690 (DDR4) |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | EFI AMI |
Processor family | Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen |
Memory form factor | DIMM |
Number of pins | 288x |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-5333 |
Max. RAM OC | 5333 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4300 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

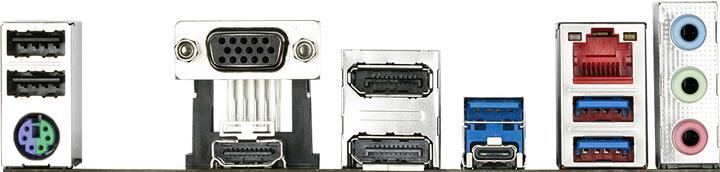

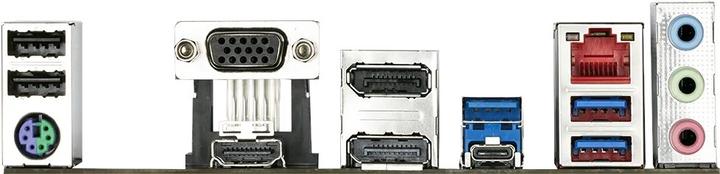

Video connections | HDMI (1x) |
Video connection version | HDMI 2.0 |
Network connections | RJ45 (1x), RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Max. port speed | 20 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x) |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Scope of delivery | EasyTune, Gigabyte Fast Boot, Gigabyte Smart Backup, Norton Internet Security, Realtek Gaming LAN Bandwidth Control, Xpress Install |
Length | 244 mm |
Width | 244 mm |
Height | 244 mm |
Weight | 970 g |
Length | 26.60 cm |
Width | 26.60 cm |
Height | 5.50 cm |
Weight | 988 g |
