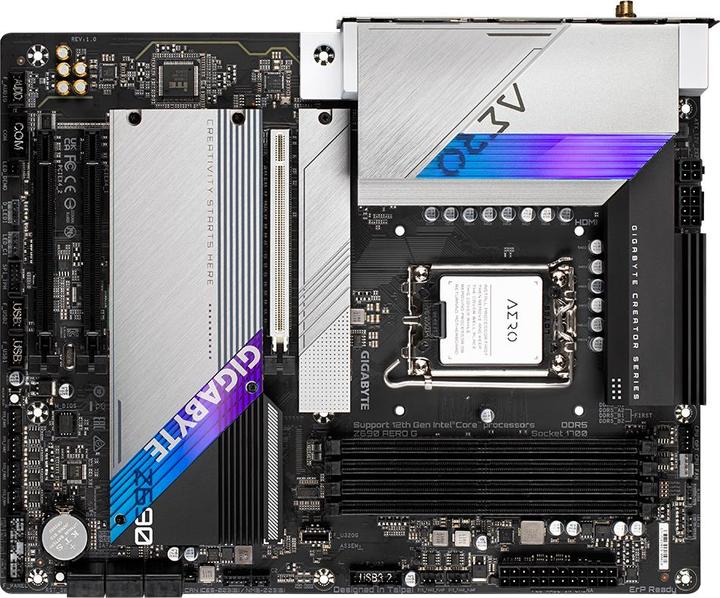

Gigabyte Z690 Aero G

LGA 1700, Intel Z690H, ATX
1Ratings
BrandMore from Gigabyte
Currently out of stock
Free shipping starting at 50.–

Product details

The Gigabyte Z690 AERO G is a powerful motherboard designed for the latest Intel processors from the Core i5, i7, and i9 series. With the LGA 1700 processor socket and the Intel Z690H chipset, it provides an excellent foundation for high-performance gaming and workstation setups. The motherboard supports DDR5 SDRAM with a maximum memory capacity of 128 GB and allows for high memory speeds of up to 6000 MHz. Support for various storage drive interfaces such as M.2, PCI Express 4.0, and SATA III ensures flexible storage options, while RAID support adds extra data security. With the capability for parallel processing via 2-Way CrossFireX and Quad-GPU CrossFireX, the Z690 AERO G is ideal for graphics-intensive applications. Additionally, it offers modern connectivity options, including USB Type-C and Wi-Fi 6, to ensure fast and reliable connections.

  • Supports up to 128 GB of DDR5 SDRAM with speeds up to 6000 MHz
  • Compatible with Intel Core i5, i7, and i9 processors
  • Provides support for M.2, PCI Express 4.0, and SATA III storage drives
  • RAID support for levels 0, 1, 5, and 10
  • Integrated Wi-Fi 6 and Bluetooth for wireless connectivity.

Key specifications

Mainboard features
Front panel audio connector
Wireless transmission
Bluetooth, Wi-Fi
Processor family
Core i5 13th Gen, Core i9 13th Gen
Number of memory modules (RAM)
10x
Memory type
DDR5 RAM
Internal connection options
S-ATA III (6x)

General information

Item number
17541268
Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
Z690 AERO G
Release date
15.11.2021

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel Z690H
Mainboard features
Front panel audio connector
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Core i5 13th Gen, Core i9 13th Gen

Memory

Memory form factor
DIMM
Number of pins
288x
Number of memory modules (RAM)
10x
Max. memory (RAM)
128 GB
Memory chip
DDR5-6200
Supported memory speed
4000 MHz, 4800 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x)
Video connection version
HDMI 1.4
Multi-GPU technology
AMD Quad-GPU CrossFireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC4080
Audio channel
7.1 Channel
Audio Connections
Headphone output (2x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (6x)
Expansion slot
PCI Express x16 (3x)

Further connections

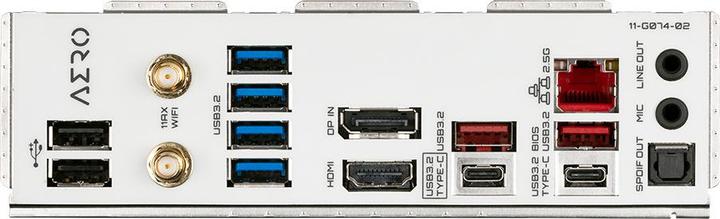

USB ports
USB-C
Exact USB ports
USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (2x)

Power supply

Power connectors
24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V

Scope of delivery

Scope of delivery
SATA cable

Product dimensions

Length
244 mm
Width
305 mm
Height
70 mm
Weight
1000 g

Package dimensions

Length
35.10 cm
Width
30.20 cm
Height
8.90 cm
Weight
2.08 kg
