Gigabyte Z590M - 1.0 - Motherboard - micro ATX - LGA1200 socket - Z590 - USB-C Gen1, USB
LGA 1200, Intel Z590 Express, mATXFree shipping starting at 50.–

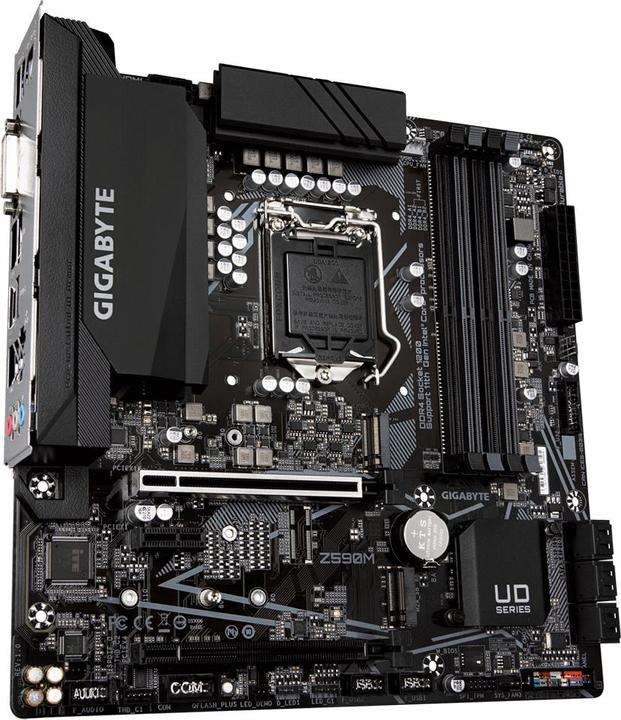

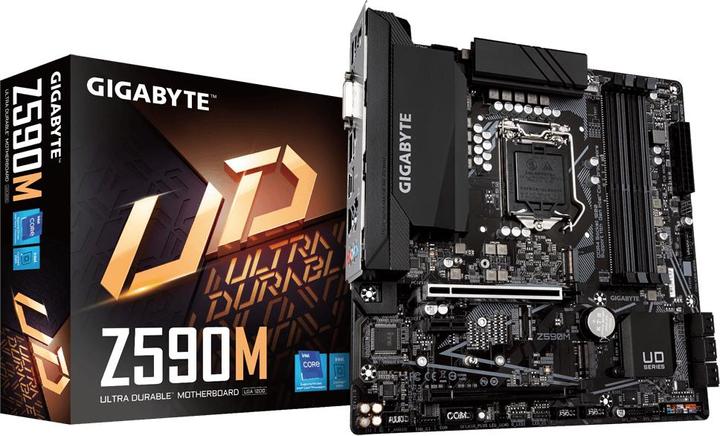

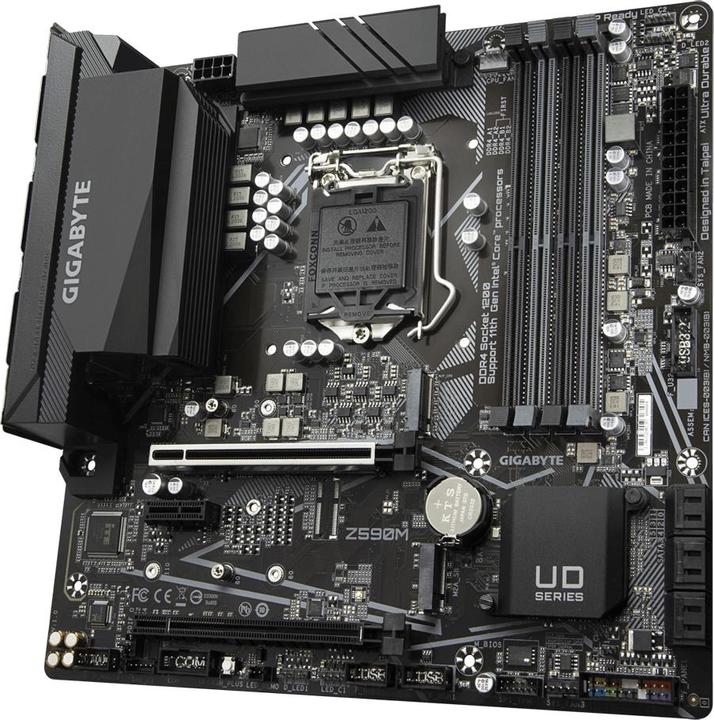

The Gigabyte Z590M - 1.0 is a powerful Micro-ATX motherboard designed for Intel processors of the 10th and 11th generations. With the LGA1200 socket, it supports a wide range of processors, including Core i3, i5, i7, i9, as well as Pentium and Celeron models. The motherboard allows for a maximum RAM capacity of 128 GB and supports DDR4 memory with up to four DIMM slots. The integrated storage interfaces include six SATA 600 ports and two M.2 slots, providing flexible storage expansion options. Additionally, the Z590M offers a variety of USB ports, including USB-C Gen1 and USB 3.2 Gen 2, ensuring fast data transfer. The onboard graphics require a compatible CPU and support HD audio with 8-channel output, making it a solid choice for multimedia applications.
Processor family | Celeron, Pentium |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Front panel audio connector |
Item number | 15677372 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | Z590M |
Release date | 16.4.2021 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1200 |
Chipset | Intel Z590 Express |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 Home |
BIOS type | UEFI AMI |
Processor family | Celeron, Pentium |
Memory form factor | DIMM |
Number of pins | 184 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4300 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Video connection version | HDMI 1.4 |
Multi-GPU technology | AMD 2-Way CrossFireX, AMD Quad-GPU CrossFireX |
Network connections | RJ45 (1x) |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
CO₂-Emission | |
Climate contribution |
Scope of delivery | HD Audio (8-channel) |
Length | 244 mm |
Width | 244 mm |
Height | 244 mm |
Weight | 1500 g |
Length | 27.90 cm |
Width | 27.50 cm |
Height | 7.30 cm |
Weight | 1.22 kg |
