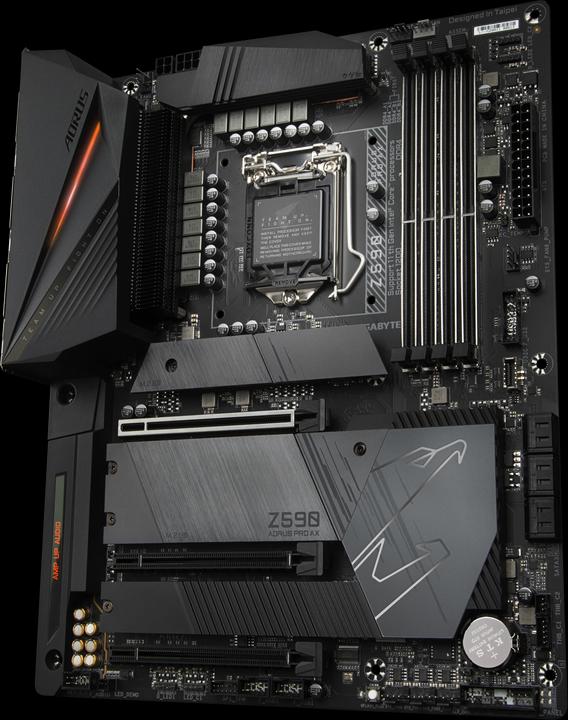

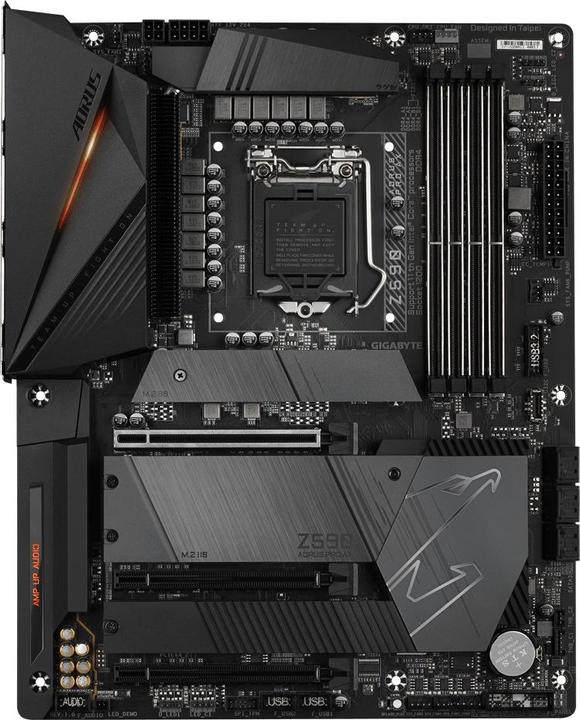

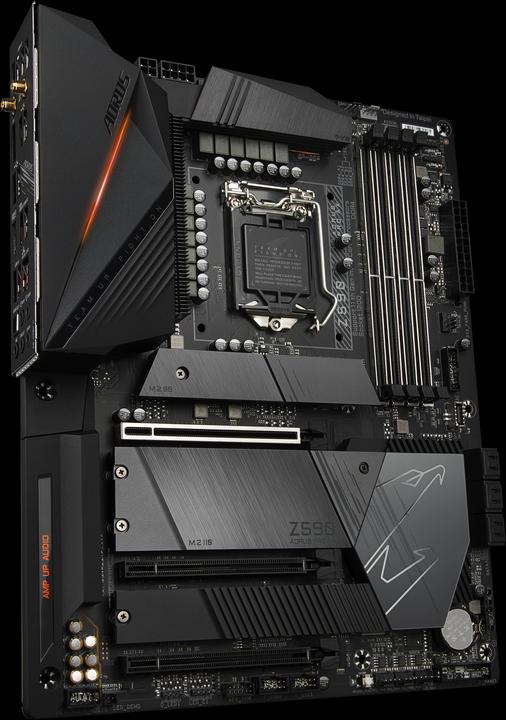

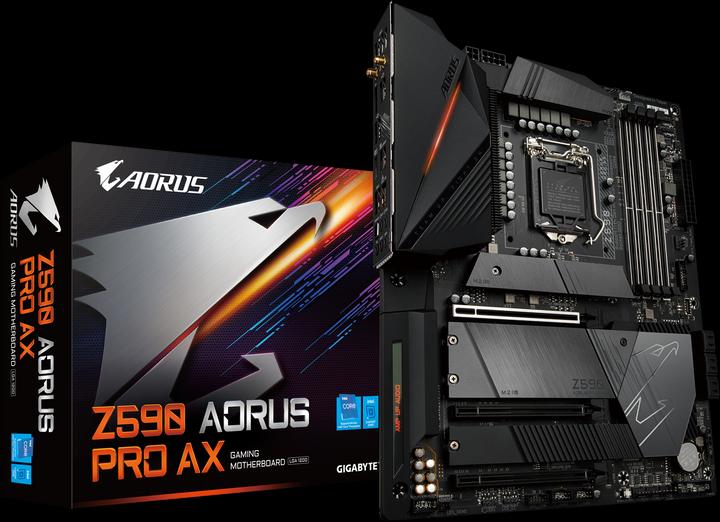

The Gigabyte Z590 Aorus Pro AX is a powerful motherboard designed for the latest 10th generation Intel processors. It supports the LGA 1200 socket and is compatible with a variety of Intel® Celeron®, Core™ i3, i5, i7, i9, and Pentium® processors. With a maximum RAM capacity of 128 GB and support for DDR4-SDRAM, this motherboard offers high flexibility for demanding applications and multitasking. The support for various storage drive interfaces, including M.2 and SATA III, enables fast data transfer and easy integration of HDDs and SSDs. Additionally, the Z590 Aorus Pro AX provides advanced networking features with 2.5 Gigabit Ethernet and Wi-Fi 6, ensuring a fast and stable internet connection. The combination of powerful graphics processing and extensive connectivity options makes this motherboard an ideal choice for gamers and creative professionals.
Processor family | Celeron, Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen, Pentium |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), M.2 SATA (1x), S-ATA III (6x) |
Wireless transmission | Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 14908083 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | Z590 AORUS PRO AX |
Release date | 14.1.2021 |
Form factor | ATX |
Socket | LGA 1200 |
Chipset | Intel Z590 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen, Pentium |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3200 |
Max. RAM OC | 4400 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x) |
Video connection version | Display port 1.2 |
Multi-GPU technology | AMD CrossfireX, AMD Quad-GPU CrossFireX |
Network connections | RJ45 (1x) |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (1x) |
Internal connection options | M.2 PCI/SATA Combo (2x), M.2 SATA (1x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 244 mm |
Weight | 1800 g |
Length | 35.30 cm |
Width | 27.80 cm |
Height | 8.50 cm |
Weight | 2.03 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus

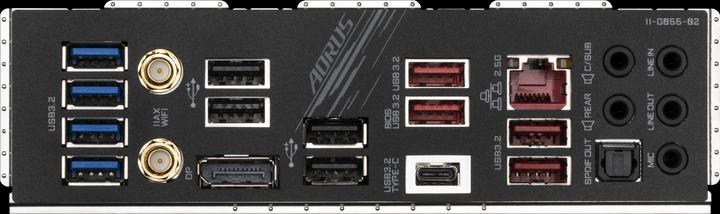

The Gigabyte Z590 Aorus Pro AX is a full-featured Z590 motherboard that includes robust power delivery, premium audio, four M.2 sockets, and 13 USB ports on the rear IO. This $290 board is a good value, especially for those who would like lots of M.2 and USB ports.
