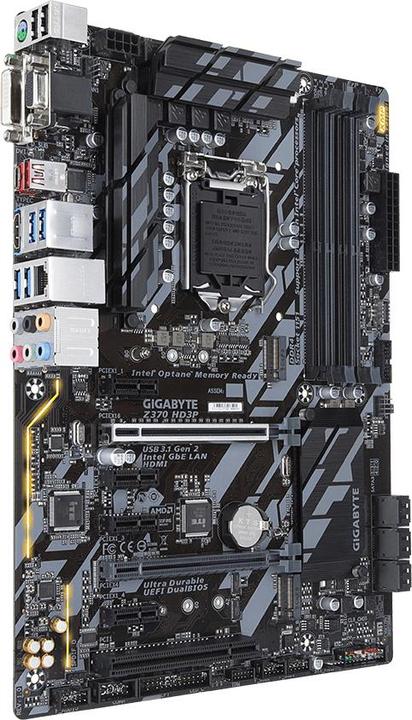

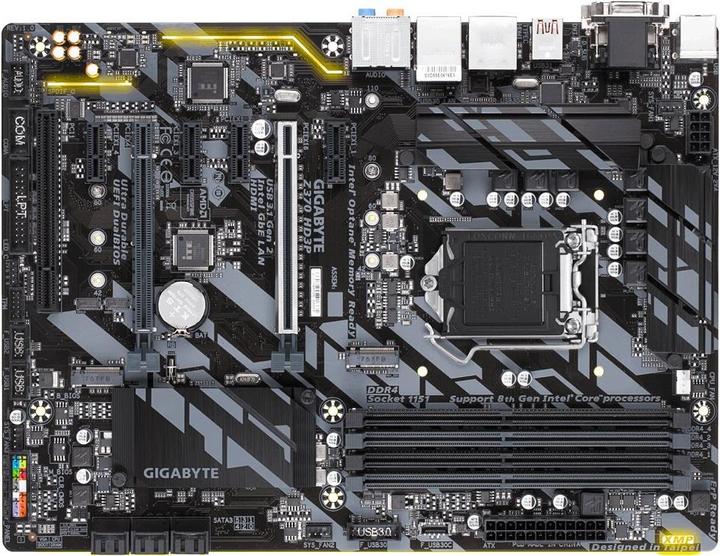

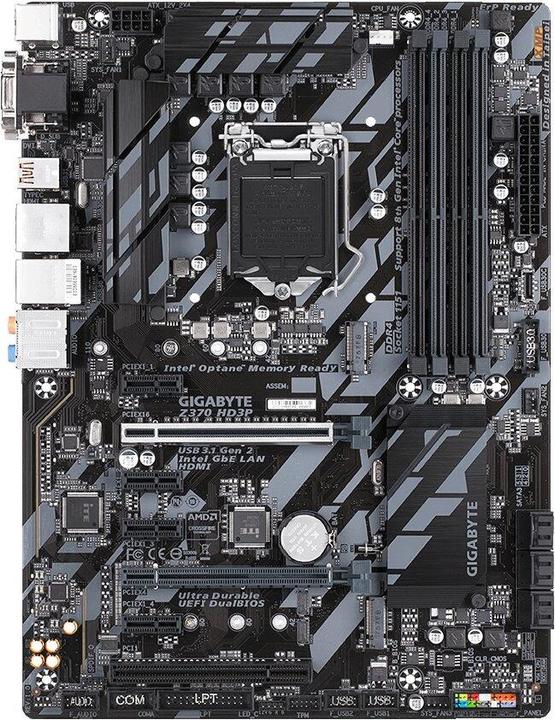

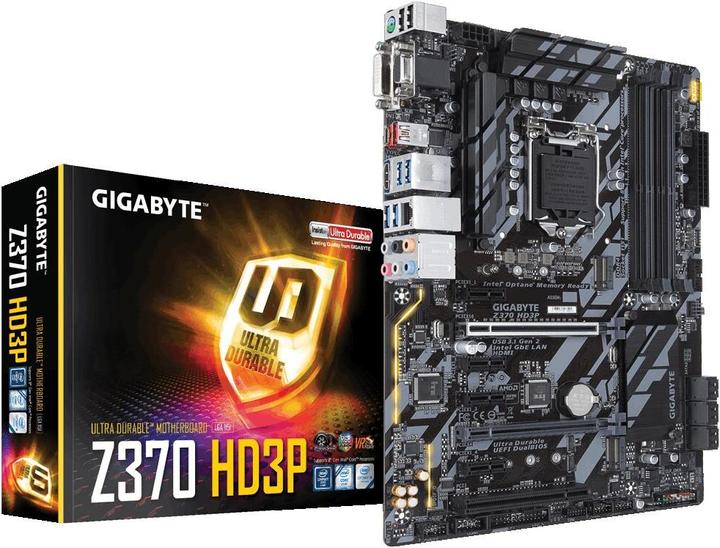

Gigabyte Z370-HD3P (LGA 1151, Intel Z370, ATX)

Description

Gigabyte Mainboard Z370 HD3P, Memory Type: DIMM, Memory Type: DDR4, PCI Slots: 1x PCI, PCI-Express Slots: 2x PCI-Express 3.0 x16, 4x PCI-Express 3.0 x1, Integrated graphics, Processor socket: LGA 1151, RAID Level: 0, 1, 5, 10, Chipset: Z370.

Specifications

Key specifications
PCI express version (max.)	3
Multi-GPU technology	AMD CrossfireX

General information
Manufacturer	Gigabyte
Product type	Motherboards i Motherboards In personal computers, a motherboard is the central printed circuit board (PCB) in many modern computers and holds many of the crucial components of the system, providing connectors for other peripherals. The motherboard is sometimes alternatively known as the mainboard, system board, or, on Apple computers, the logic board. It is also sometimes casually shortened to mobo. More information...
Item number	6595736
Manufacturer no.	Z370-HD3P
Release date	05.10.2017
Sales rank in Product type Motherboards	55 of 491
External links	Manufacturer's site (en)

Motherboard properties
Form factor i Form factor In computer technology, the form factor is an indication of the size and fastening possibilities of a component used in a computer. This standardization makes it easy to assemble and replace various components. More information...	ATX i ATX ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995 to improve on previous de facto standards like the AT form factor. More information...
CPU socket i CPU socket A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering. Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket. More information...	LGA 1151
Chipset i Chipset The chipset supports the processor in its task. More information...	Intel Z370
Dual BIOS i Dual BIOS Some motherboards offer a DualBIOS. In case of an error, the second (still intact) BIOS can take over the startup process and undo the change. This can be a rescue anchor when flashing the BIOS, should the newly installed BIOS version not work. Furthermore, different BIOS settings can be loaded with a DualBIOS. More information...	Yes
SuperSpeed USB 3.0 i SuperSpeed USB 3.0 USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. The standard from 2008 defines a 5 Gbit/s transfer rate. More information...	Yes
UEFI BIOS i UEFI BIOS The Unified Extensible Firmware Interface (UEFI) is a specification that defines a software interface between an operating system and platform firmware. UEFI is meant as a replacement for the Basic Input/Output System (BIOS) firmware interface, present in all IBM PC-compatible personal computers. In practice, most UEFI images have legacy support for BIOS services. UEFI can be used to allow remote diagnostics and repair of computers, even without another operating system. More information...	Yes

Processor compatibility
CPU power design (Phases) i CPU power design (Phases) Describes how many individual phases are available for the CPU.	4
Processor family i Processor family The family the processor belongs to.	Core i7 8th Gen , Core i5 8th Gen , Core i3 8th Gen

Memory i Memory Computer data storage, often called storage or memory, is a technology consisting of computer components and recording media used to retain digital data. It is a core function and fundamental component of computers. More information...
Number of memory modules i Number of memory modules A memory module or memory latch is a small circuit board on which several memory components (dynamic RAM in the form of integrated circuits) are soldered. Memory modules form or expand the main memory of electronic devices such as computers or printers and are plugged into specially designed slots. More information...	4 x
Memory type i Memory type DDR-SDRAM ("Double Data Rate Synchronous Dynamic Random Access Memory") is a type of random access memory (RAM) currently available in three categories. DDR-SDRAM with 184 contacts, DDR2-SDRAM with 240 contacts and DDR3-SDRAM also with 240 contacts. They are mainly used for memory modules of the DIMM or SO-DIMM standard as main memory in PCs and laptops. More information...	DDR4-RAM
Channel Architecture	2 i 2 More information...
RAM buffer i RAM buffer In addition to bandwidth and capacity variants, modules can 1. Optionally implement ECC, which is an extra data byte lane used for correcting minor errors and detecting major errors for better reliability. Modules with ECC are identified by an additional ECC in their designation. 2. Be "registered", which improves signal integrity (and hence potentially clock speed and physical slot capacity) by electrically buffering the signals at a cost of an extra clock of increased latency. Those modules are identified by an additional R in their designation, whereas non-registered (a.k.a. "unbuffered") RAM may be identified by an additional U in the designation. 3. Be Fully buffered modules, which are designated by F or FB and do not have the same notch position as other classes. Fully buffered modules cannot be used with motherboards that are made for registered modules, and the different notch position physically prevents their insertion.	unbuffered
Memory form factor i Memory form factor A DIMM or dual in-line memory module, comprises a series of dynamic random access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share. The main difference between SIMMs and DIMMs is that DIMMs have separate electrical contacts on each side of the module, while the contacts on SIMMs on both sides are redundant. Another difference is that standard SIMMs have a 32-bit data path, while standard DIMMs have a 64-bit data path. More information...	DIMM 288

Mass storage controller 1
Data storage controller	Intel Z370
S-ATA III i S-ATA III Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA 3 can transfer up to 6 Gbit/s. More information...	6 x
M.2	2 x
RAID configuration i RAID configuration RAID (redundant array of independent disks, originally redundant array of inexpensive disks) is a storage technology that combines multiple disk drive components into a logical unit. Data is distributed across the drives in one of several ways called "RAID levels", depending on what level of redundancy and performance (via parallel communication) is required. More information...	0 i 0 (block-level striping without parity or mirroring) has no (or zero) redundancy. It provides improved performance and additional storage but no fault tolerance. More information... , 1 i 1 (mirroring without parity or striping), data are written identically to two drives, thereby producing a "mirrored set"; the read request is serviced by either of the two drives containing the requested data, whichever one involves least seek time plus rotational latency. More information... , 5 i 5 (block-level striping with distributed parity) distributes parity along with the data and requires all drives but one to be present to operate; the array is not destroyed by a single drive failure. More information... , 10 i 10 Ein RAID-10-Verbund ist ein RAID 0 über mehrere RAID 1. Es werden dabei die Eigenschaften der beiden RAIDs kombiniert: Sicherheit und gesteigerte Schreib-/Lesegeschwindigkeit. Ein RAID-10-Verbund benötigt mindestens vier Festplatten. More information...

Expansion slots i Expansion slots The expansion card (also expansion board, adapter card or accessory card) in computing is a printed circuit board that can be inserted into an electrical connector, or expansion slot on a computer motherboard, backplane or riser card to add functionality to a computer system via the expansion bus. More information...
PCI express version (max.) i PCI express version (max.) PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCIe, is a computer expansion card standard designed to replace the older PCI, PCI-X, and AGP bus standards. PCIe has numerous improvements over the aforementioned bus standards, including higher maximum system bus throughput, lower I/O pin count and smaller physical footprint, better performance-scaling for bus devices, a more detailed error detection and reporting mechanism, and native hot-plug functionality. More recent revisions of the PCIe standard support hardware I/O virtualization. More information...	3
PCI Express x16 i PCI Express x16 PCI Express ("Peripheral Component Interconnect Express", abbreviated: PCIe or PCI-E) is an extension standard for connecting peripheral devices to the chipset of a main processor. PCIe is the successor of PCI, PCI-X and AGP and offers a higher data transfer rate per pin compared to its predecessors. During its development the interface was called "3GIO", which stands for "3rd Generation Input/Output". More information...	2 x
PCI Express x1 i PCI Express x1 PCI Express, officially abbreviated as PCI-E or PCIe, is a computer expansion card interface format introduced by Intel in 2004. PCI Express was designed to replace the general-purpose PCI expansion bus, the high-end PCI-X bus and the AGP graphics card interface. Unlike previous PC expansion interfaces, rather than being a bus it is structured around point-to-point serial links called lanes. More information...	4 x
PCI i PCI Conventional PCI (PCI is an initialism formed from Peripheral Component Interconnect,[1] part of the PCI Local Bus standard and often shortened to PCI) is a local computer bus for attaching hardware devices in a computer. More information...	1 x

Graphics properties i Graphics properties Beschreibt die Grafik Eigenschaften des Gerätes.
Multi-GPU PCI-E x16 Speed i Multi-GPU PCI-E x16 Speed Describes how several graphics cards can be operated at which PCI Express speed.	x16/x4
Multi-GPU technology i Multi-GPU technology In 3D computer graphics, various methods are used to distribute the load on several graphics chips or graphics cards. The collective term for these different techniques is Multi-GPU. Although every manufacturer offers similar operating modes, the name of the respective technology is a special marketing word creation. More information...	AMD CrossfireX i AMD CrossfireX AMD CrossFireX™ technology is the ultimate multi-GPU performance gaming platform. Unlocking game-dominating power, AMD CrossFireX™ harnesses the power of two or more discrete graphics cards working in parallel to dramatically improve gaming performance. With AMD CrossFireX™-certified AMD Radeon™ HD graphics cards ready for practically every budget and the flexibility to combine two, three or four GPUs, AMD CrossFireX™ is the perfect multi-GPU solution for those who demand the best. Extreme Performance By combining the intelligent software algorithms of the AMD Catalyst™ suite with dedicated scaling logic in each AMD graphics processor, a gaming rig equipped with AMD CrossFireX™ technology can deliver up to four times the performance of a system with a single graphics card. More information...

Graphic connectors i Graphic connectors Describes which graphic outputs the mainboard has. More information...
DVI-D i DVI-D Digital Visual Interface (DVI) is an electrical interface for the transmission of video data. In the computer sector, DVI has become a standard for connecting TFT monitors to a computer's graphics card. More information...	1 x
HDMI type A receptacle i HDMI type A receptacle The High-Definition Multimedia Interface (HDMI) is a compact audio/video connector interface for transmitting uncompressed digital streams. It represents a digital alternative to consumer analog standards such as Radio Frequency (RF) coaxial cable, composite video, S-Video, SCART, component video, D-Terminal, and VGA.	1 x

Network
RJ45/LAN port i RJ45/LAN port Network connection allows connection to an internal or external network. More information...	1 x
Max. port speed i Max. port speed Describes the maximum data transfer rate. Is not necessarily supported by all ports. More information...	1000 Mbit/s i 1000 Mbit/s In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second). More information...
Ethernet controller brand i Ethernet controller brand Describes the brand of the built-in Ethernet controller. More information...	Intel i Intel Intel Corporation is an American multinational semiconductor chip maker corporation headquartered in Santa Clara, California. More information...
Ethernet controller i Ethernet controller Describes which Ethernet controller(s) are installed. More information...	I219V

audio
Chip	ALC1220

Internal interfaces
USB 3.0 type A i USB 3.0 type A The universal serial bus (USB) is a serial bus system for the connection of a computer to external devices. USB3.0 can reach up to 5 Gbit/s in Superspeed modus. More information...	3 x
USB 2.0 type A i USB 2.0 type A Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed. The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm. More information...	4 x
Number of fan connector i Number of fan connector Describes how many fan connectors are present on the motherboard. More information...	4

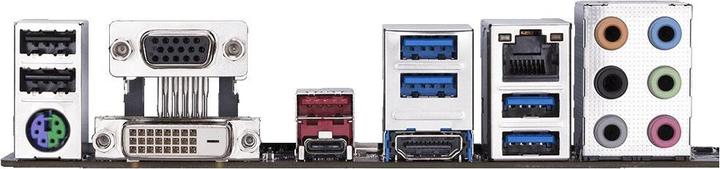

External interfaces i External interfaces Describes which interfaces the device has that are accessible from outside (the device does not need to be opened).
USB 2.0 type A i USB 2.0 type A Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed. The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm. More information...	2 x
USB 3.0 type A i USB 3.0 type A The universal serial bus (USB) is a serial bus system for the connection of a computer to external devices. USB3.0 can reach up to 5 Gbit/s in Superspeed modus. More information...	4 x
USB 3.1	2 x
USB Type-C	1 x

Product dimensions i Product dimensions Physical size of an object
Length	305 mm
Width	225 mm
Weight	1000 g
