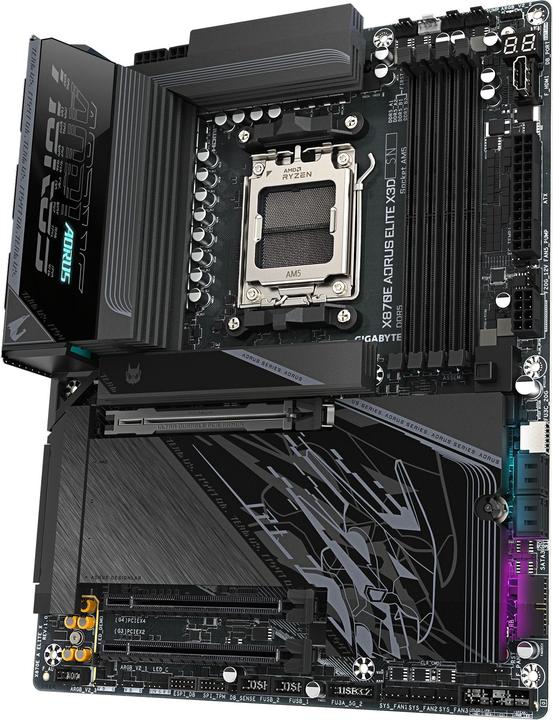

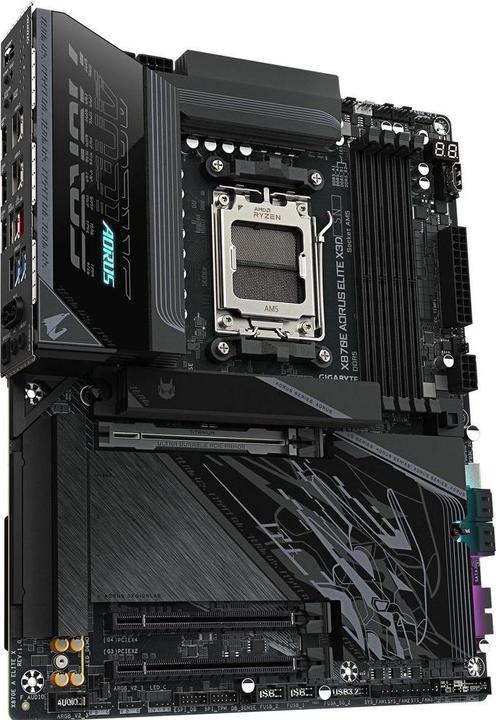

The GIGABYTE X870E AORUS ELITE X3D is a powerful ATX mainboard designed for the latest AMD Ryzen processors of the 7000, 8000 and 9000 series. With the advanced AMD X870E chipset, it provides an excellent basis for high-performance computing. The motherboard supports up to 256 GB DDR5 RAM with speeds of up to 9000 MHz, making it ideal for demanding applications and gaming. The versatile connectivity options include multiple HDMI and USB ports as well as PCIe slots, allowing flexible expansion and connection of peripheral devices. The combination of state-of-the-art technology and sophisticated design makes this motherboard an excellent choice for anyone looking for a powerful and future-proof platform.
Mainboard features | Front panel audio connector |
Wireless transmission | Bluetooth, Wi-Fi |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Internal connections | M.2 (4x), S-ATA III (4x) |
Item number | 61576468 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer No. | X870E A ELITE X |
Release date | 9.12.2025 |
Sales rank in Category Motherboards | 44 of 1093 |
External links |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X870E |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 7 / 802.11be |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 9000 MHz |
Supported memory speed | 5200 MHz, 6000 MHz, 6400 MHz, 6600 MHz, 7800 MHz, 8000 MHz, 8400 MHz |
Transfer rate | 9000 MT/s |
RAM buffer | Unbuffered |
Video connections | 2 x USB-C, HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm Line In (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connections | M.2 (4x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 3) (1x), PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 8 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 2 (5x), USB-C 3.2 Gen 1 (3x), USB-C 4 (2x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂ emissions | 4568.57 kg |
Climate contribution | CHF 13.94 |
Scope of delivery | Software |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 2980 g |
Length | 36 cm |
Width | 30 cm |
Height | 9 cm |
Weight | 3.02 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus
Gigabyte X870E Aorus Elite X3D scam! The "Elite X3D" offers very little "Aorus Elite" apart from the generally standardised design within the Gigabyte family. Rather, it is based on the circuit board of the previous "Pro", adopts front USB power delivery from Asus ROG and steals MSI's ingenious USB4 implementation...
