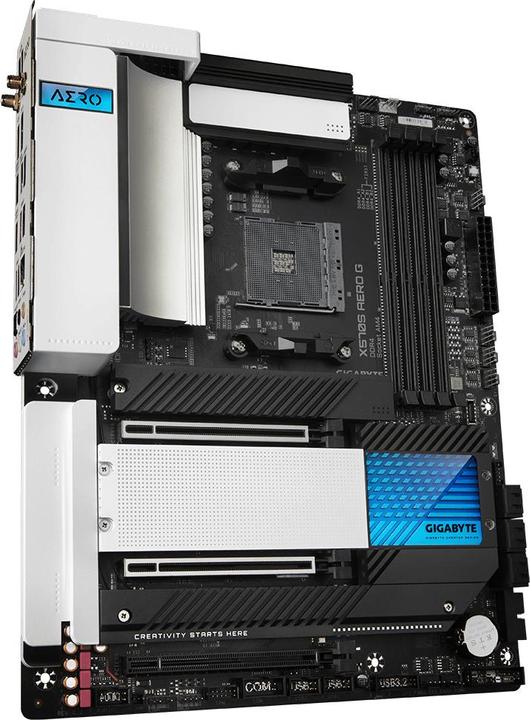

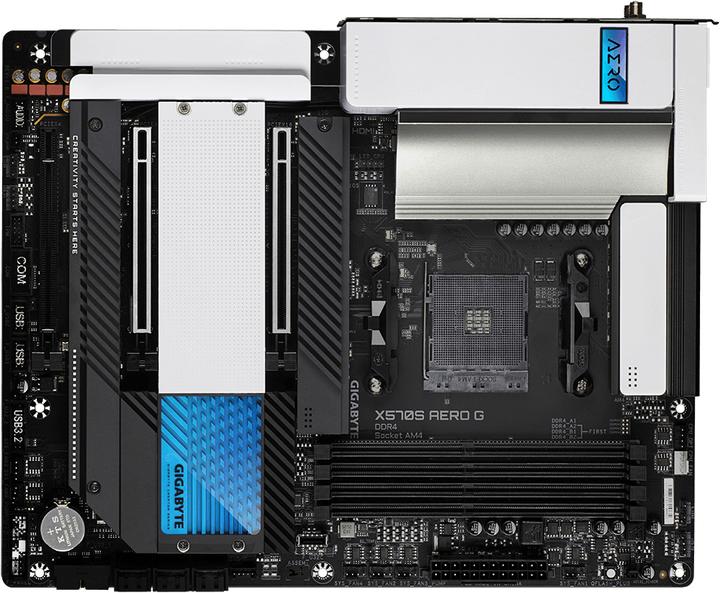

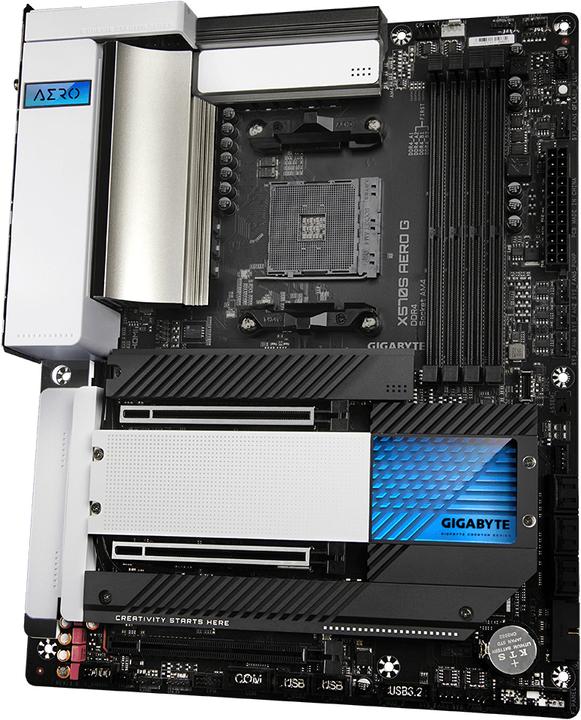

Gigabyte X570S AERO G

AM4, AMD X570, ATX
2Ratings
BrandMore from Gigabyte
Test reportsVery good based on 1 test
Currently out of stock
Free shipping starting at 50.–

Product details

The Aero series motherboards represent a modern approach for creatives, featuring optimized functions for content creation. They provide reliable computing power, impressive connectivity, expandable graphics capabilities, and ultra-fast storage for creatives facing high design workloads such as 3D rendering and feature-length video production.

Key specifications

Processor family
AMD 2000 Series
Memory type
DDR4-RAM
Number of memory modules (RAM)
10 x
Internal connection options
S-ATA III (6x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header, Temperature sensor connections, Trusted Platform Module
Item number
17482655

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
X570S AERO G
Release date
7.9.2021

Motherboard properties

Form factor
ATX
Socket
AM4
Chipset
AMD X570
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header, Temperature sensor connections, Trusted Platform Module
Operating system compatibility
Windows 10 Home, Windows 11 Home
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 2000 Series

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
10 x
Max. memory (RAM)
128 GB
Supported memory speed
2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz, 4000 MHz, 4400 MHz, 5000 MHz, 5200 MHz
Memory type
DDR4-RAM
RAM buffer
Error Correcting Code, Unbuffered

Graphics properties

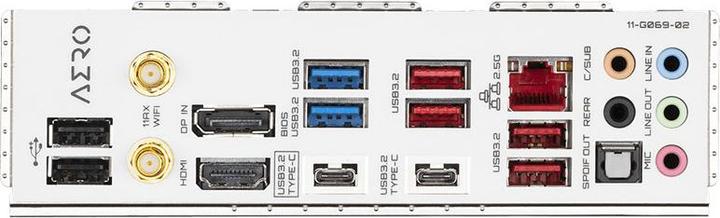

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
HDMI 2.1
Multi-GPU technology
AMD Quad-GPU CrossFireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel

Audio

Chip
Realtek ALC1220-VB
Audio channel
7.1 Channel
Audio Connections
Audio In

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
S-ATA III (6x)
Expansion slot
PCI Express x16 (Gen 4) (1x)
PCI express version (max.)
4
Number of fan connector
4

Further connections

USB ports
USB-A

Power supply

Power connectors
24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
305 mm
Height
80 mm
Weight
1000 g

Package dimensions

Length
35 cm
Width
30 cm
Height
8 cm
Weight
2.16 kg

Compare products

Goes with

Reviews & Ratings

Warranty score

How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?

Source: Digitec Galaxus
  • 1.MSI
    2.6 %
  • 2.AsRock
    2.7 %
  • 2.Gigabyte
    2.7 %
  • 4.ASUS
    2.8 %
  • 5.Supermicro
    3.4 %

Warranty case duration

How many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?

Source: Digitec Galaxus
  • 3.MSI
    2 days
  • 3.Supermicro
    2 days
  • 5.Gigabyte
    6 days
  • 5.NZXT
    6 days
  • 7.ASUS
    8 days

Return rate

How often is a product of this brand in the «Motherboards» category returned?

Source: Digitec Galaxus
  • 1.MSI
    4.9 %
  • 2.ASUS
    5.1 %
  • 2.Gigabyte
    5.1 %
  • 4.Supermicro
    6.4 %
  • 5.AsRock
    6.7 %
Source: Digitec Galaxus

Translation: machine translated
Very good85/100
Toms Hardware Guide Logo
Toms Hardware GuideSingle testReleaseSeptember 2021
  • PositiveGigabyte's X570S Aero G is a good option for content creators looking to save some money for other components. For under $350, it's a well-rounded solution for those who can make use of the VisionLink feature and fast M.2 and USB storage options.
  • NegativeWhite styling may not be for everyone
  • NegativeWi-Fi 6E would be appreciated

Gigabyte's new X570S Aero G is a well-rounded option in the AMD X570/X570S space. Featuring four M.2 sockets for ultra-fast storage, USB 3.2 Gen 2x2 Type-C port (with VisionLink), and integrated Wi-Fi 6, the board is configured well for creative-focused builders, or just general-purpose builders who want lots of storage and expansion options...
