Gigabyte UD850GM PG5

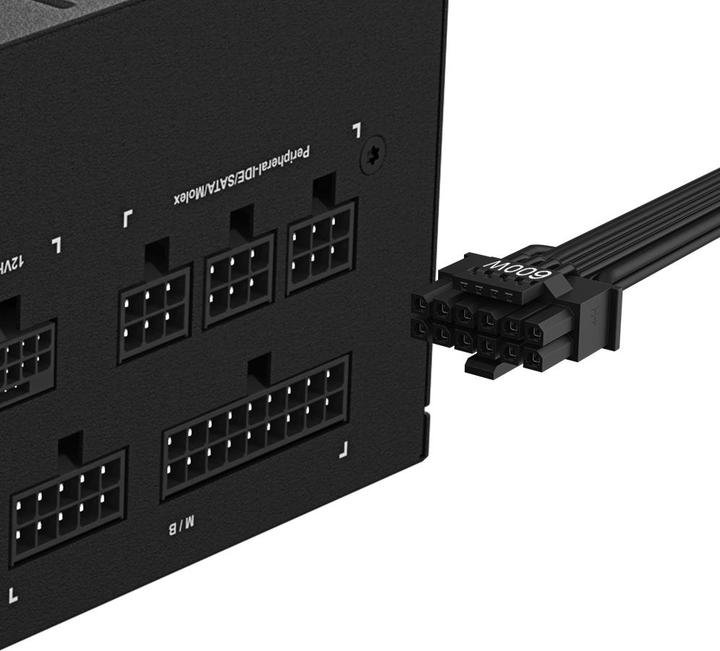

The modular power supply UD850GM PCIE 5.0 features a 16-pin connector and comes with a high-quality native 16-pin cable, allowing you to use the power supply with a PCIe Gen 5.0 graphics card. This cable can provide up to 600 watts of power for the graphics card. High-quality Japanese capacitors are used for the main capacitors to achieve efficient performance and ensure longer reliability.

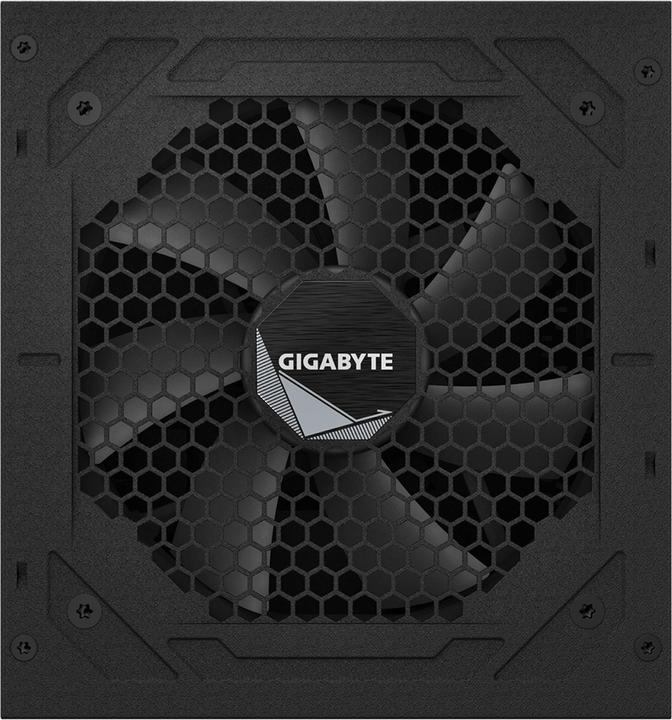

The product design follows the spirit of GIGABYTE Ultra Durable, offering a variety of high-quality materials and designs. Ultra Durable combines high-quality Japanese main capacitors, an improved thermal solution, a 120mm smart hydraulic bearing fan (HYB), and six circuit protection designs. It provides consumers with a high-quality and stable power supply that can be used for an extended period.

Technical details:

• Dimensions: 150 x 86 x 140 mm (W x H x D)
• Color: Black
• ATX Standard: 3.0
• Efficiency: ~ 90% at 230 V, 80 PLUS Gold certified
• Form Factor: SFX
• Continuous Power: 850 W

+3.3V: 20 A
+5V: 20 A
+12V: 70.8 A

• 12V: 0.3 A

+5Vsb: 3 A

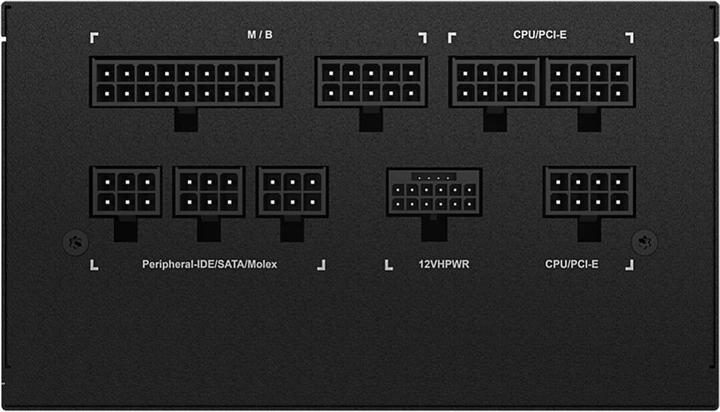

• Connectors:

1x 20+4-Pin
2x 4+4-Pin ATX12V
1x 16-Pin 12VHPWR
4x 6+2-Pin PCIe
8x SATA
3x 4-Pin Molex / 1x Floppy

• Protection: OVP/OPP/SCP/UVP/OCP/OTP
• Package Contents:

1x Gigabyte UD850GM modular power supply
1x 20+4 Pin cable (one connector, 610 mm)
2x 4+4 Pin cables (two connectors, 600 mm + 200 mm)
1x PCIe-16-Pin cable / 12+4-Pin 12VHPWR Micro-Fit 3.0, 55A (one connector, 700 mm)
2x PCIe 6+2 Pin cables (each with two connectors, 600 mm + 150 mm)
2x SATA cables (each with four connectors, 600 mm + 150 mm + 150 mm + 150 mm)
1x Molex (x3) / Floppy (x1) cable (four connectors, 500 mm + 120 mm + 120 mm + 150 mm).
