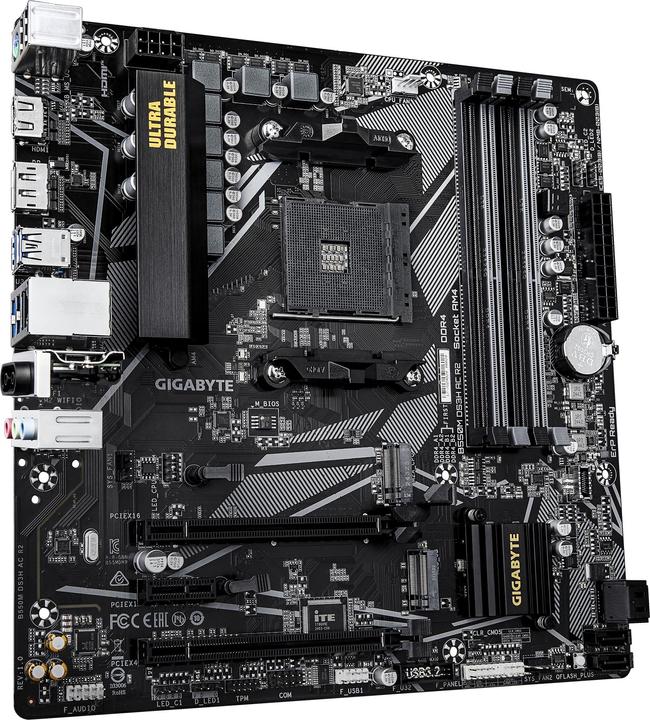

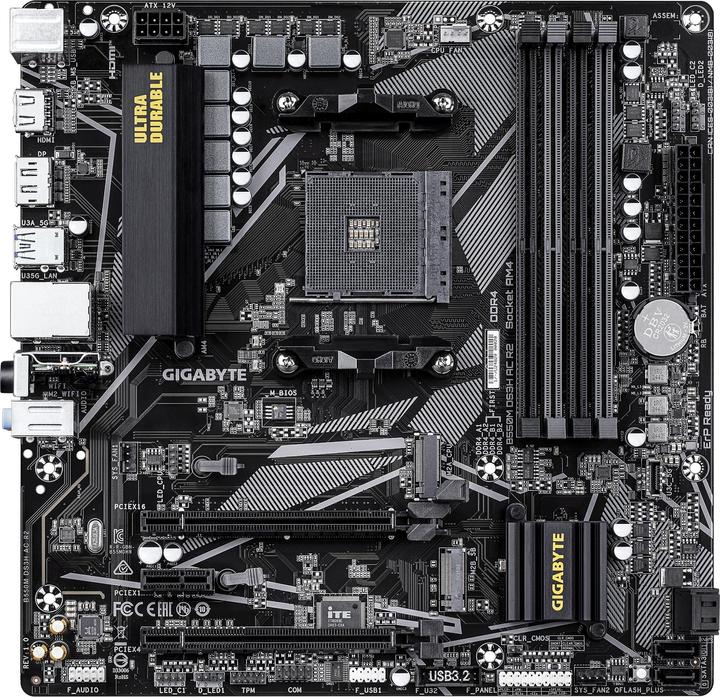

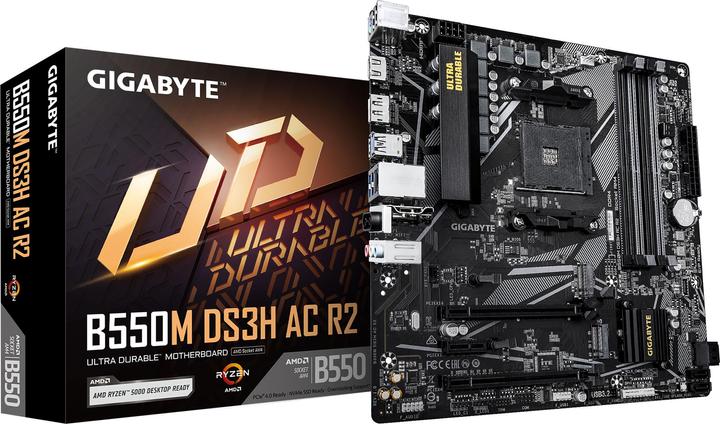

Gigabyte Motherboard for Intel processors B550M DS3H AC R2

AM4, AMD B550, mATX
Ratings
BrandMore from Gigabyte
Delivered between Sat, 26.7. and Tue, 5.8.
Only 3 pieces in stock at supplier
free shipping

Product details

Enhance your computer's performance with GIGABYTE's proven motherboard series: AORUS, AERO, and GIGABYTE. With thoughtful design and modern features, these boards provide reliable performance and high stability. Whether you are a gamer, content creator, or professional user, these series are tailored to your needs and impress with high build quality and support for the latest technologies.

Key specifications

Processor family
AMD 3000 Series, AMD 4000 Series, AMD 5000 Series
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCIe (2x), S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header
Item number
58795844

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B550M DS3H AC R2
Release date
19.5.2025

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM4
Chipset
AMD B550
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 5 / 802.11ac

Processor

Processor family
AMD 3000 Series, AMD 4000 Series, AMD 5000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4 RAM
Max. RAM OC
4733 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz, 4000 MHz, 4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

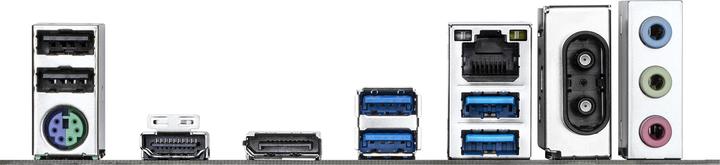

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8111H
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC1220-VB
Audio channel
7.1 Channel
Audio Connections
Headphone output (1x), Jack 3.5mm Line In (1x), Microphone

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
M.2 PCIe (2x), S-ATA III (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (1x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 1 (4x)

Power supply

Power connectors
24-pin ATX

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Aerial, Battery CR2032, Screws

Product dimensions

Length
244 mm
Width
244 mm
Height
35 mm
Weight
980 g
