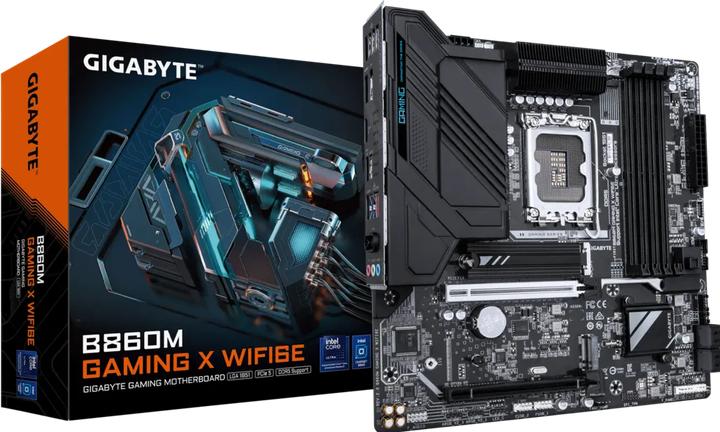

Enhance your computer's performance with GIGABYTE's proven motherboard series: AORUS, AERO, and GIGABYTE. With innovative design and cutting-edge features, these boards deliver outstanding performance and reliability. Whether you are a gamer, content creator, or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.
Mainboard features | Front panel audio connector |
Wireless transmission | Bluetooth, Wi-Fi |
Number of memory modules (RAM) | 4x |
Internal connection options | S-ATA III (4x) |
Item number | 53918391 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B860M GAMING X WIFI6E |
Release date | 17.7.2025 |
External links |
Form factor | Micro ATX (mATX) |
Socket | Socket S1 |
Chipset | Intel B860 |
Mainboard features | Front panel audio connector |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 5 / 802.11ac, Wi-Fi 6E / 802.11az |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 9200 MHz |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | DisplayPort 2.1, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125 |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x16 (4x) |
PCI express version (max.) | 5 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂ emissions | 1878.02 kg |
Climate contribution | CHF 7.40 |
Length | 244 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 1225 g |
Length | 28 cm |
Width | 27.20 cm |
Height | 7.10 cm |
Weight | 1.21 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus
Caution is advised when purchasing the 200 euro Gigabyte B860M Gaming X WIFI6E. The manufacturer equips revisions 1.0 and 2.0 with the Intel AX211 WLAN module. Revisions 1.1 and 2.1, on the other hand, are equipped with the Realtek RTL8852CE chip. We tested the variant with Intel's Wi-Fi 6E adapter, which transmits data at around 1.5 Gbit/s over short distances in the 5 and 6 GHz bands...
